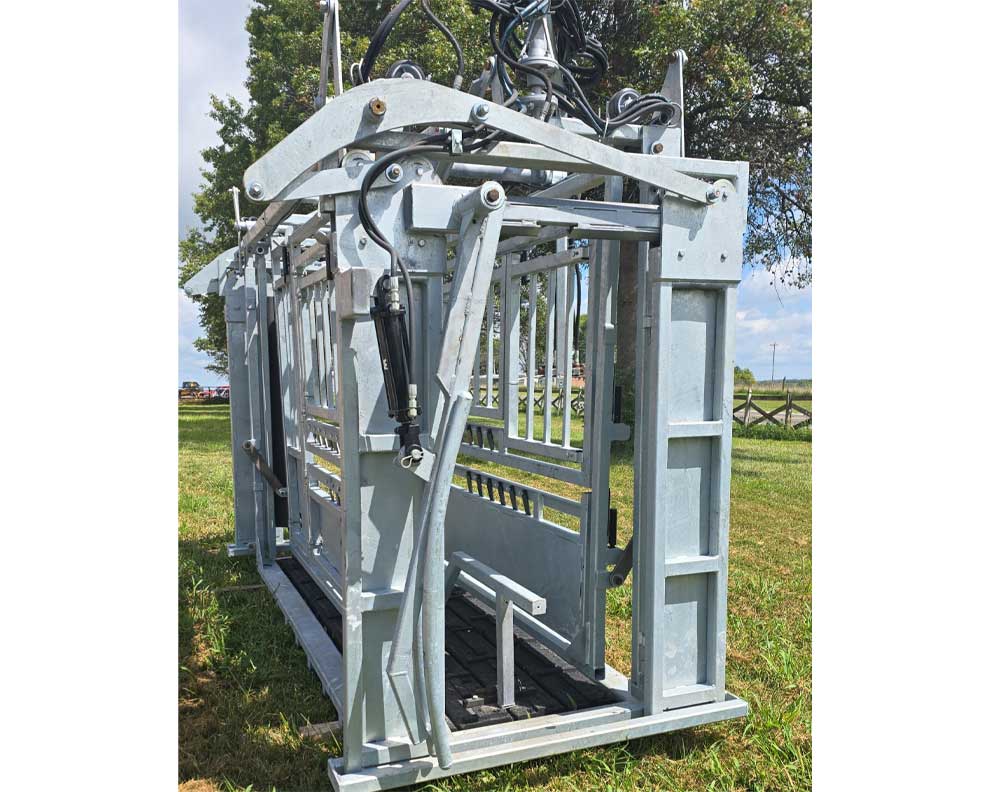

Precision Farm Equipment Manufacturing

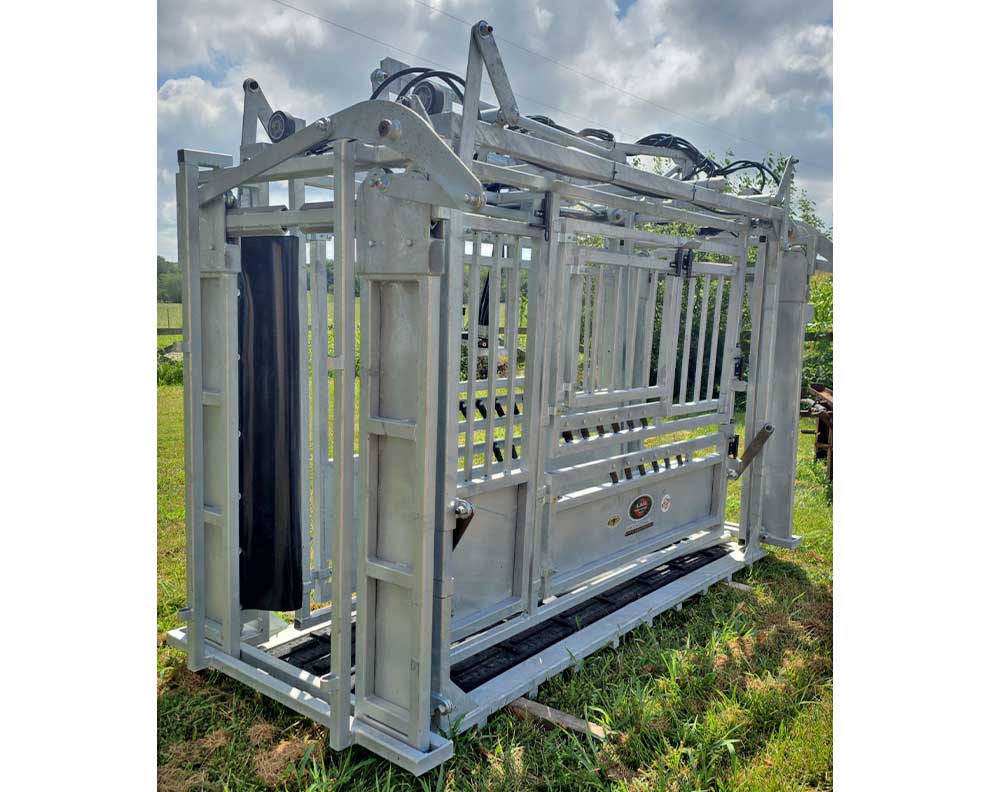

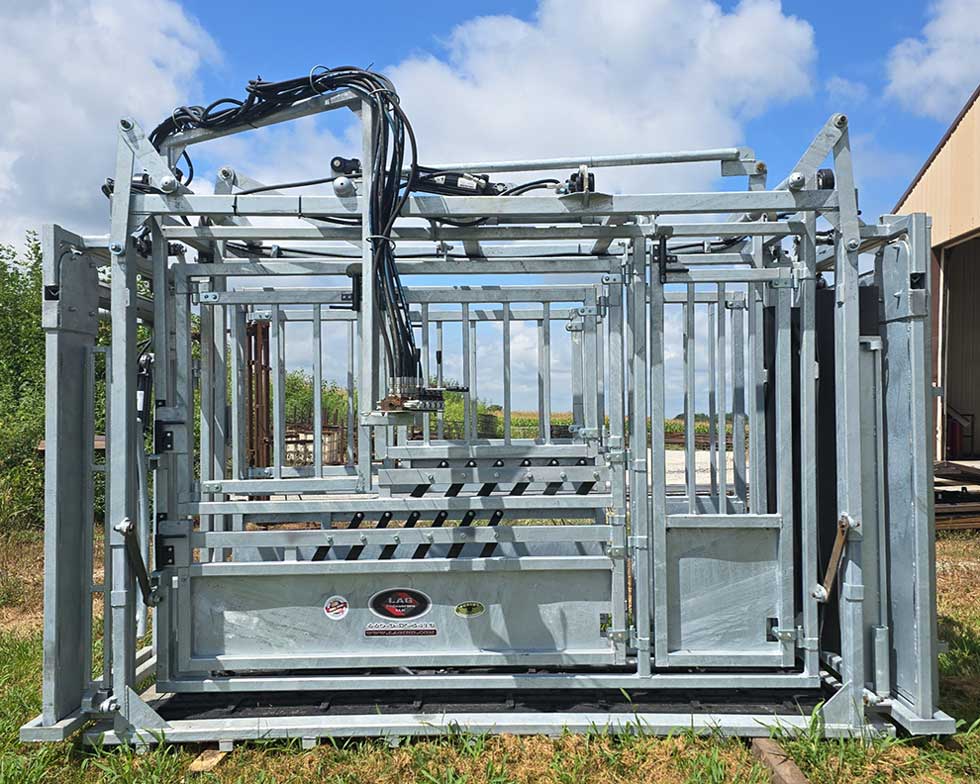

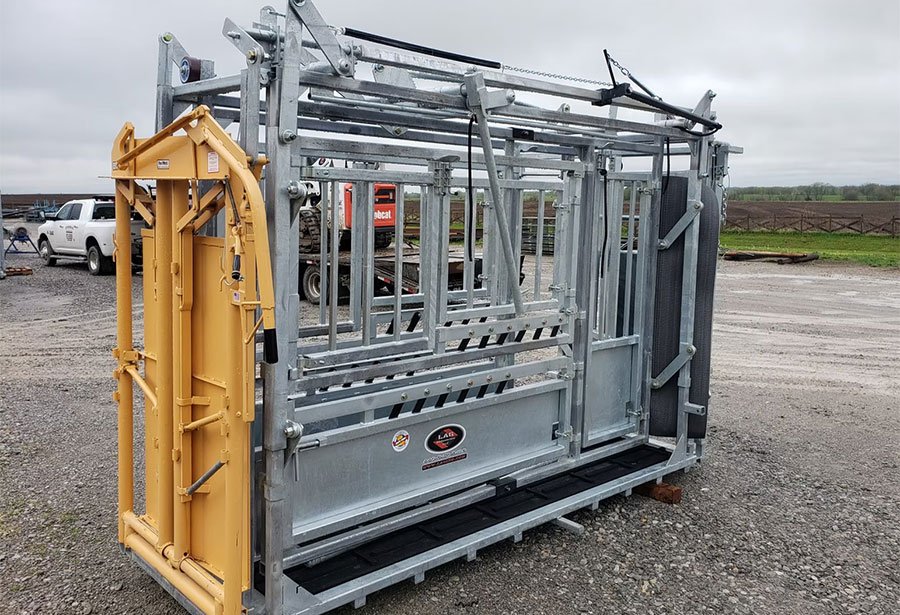

• Hot-dipped galvanization for extended durability
• Comes with a FOR-MOST Headgate or option to supply your own headgate
• Built on a 1 1/2″ square tube allowing for easy cleaning and increased chute lifespan
• Features Shelby Trailer flooring for improved traction and noise reduction compared to steel floors
• Adjustable palpation cage prevents calves from turning around
• Equipped with split butt bar and exit gates for enhanced animal access, control, and safety
• Includes adjustable and removable clipping bars that can squeeze in with the chute
• Standard brisket bar easily removed for smaller animals
• Side access gates with two large doors
• Handle design allows quick access without struggling with springs, suitable for operators of all heights
• Ample head clearance throughout, with a minimum of 72″ at all points on the chute

• Loading chutes available in bare steel or hot-dipped galvanized
• Option to include or exclude the ground load side
• Customization available to fit any situation

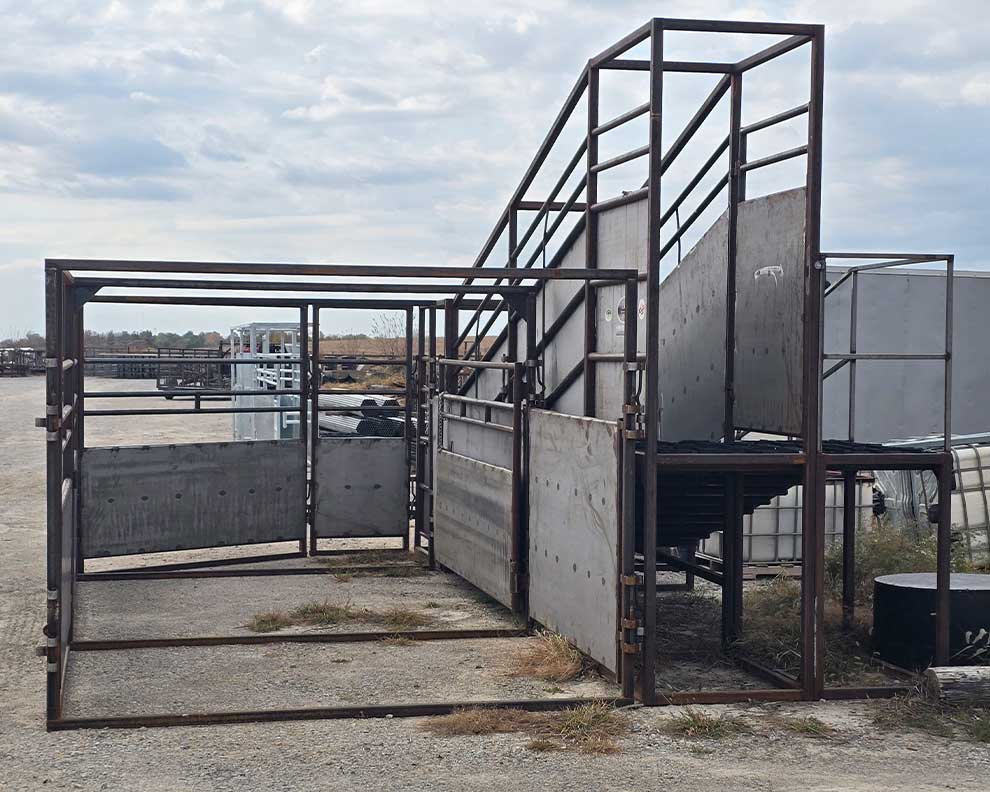

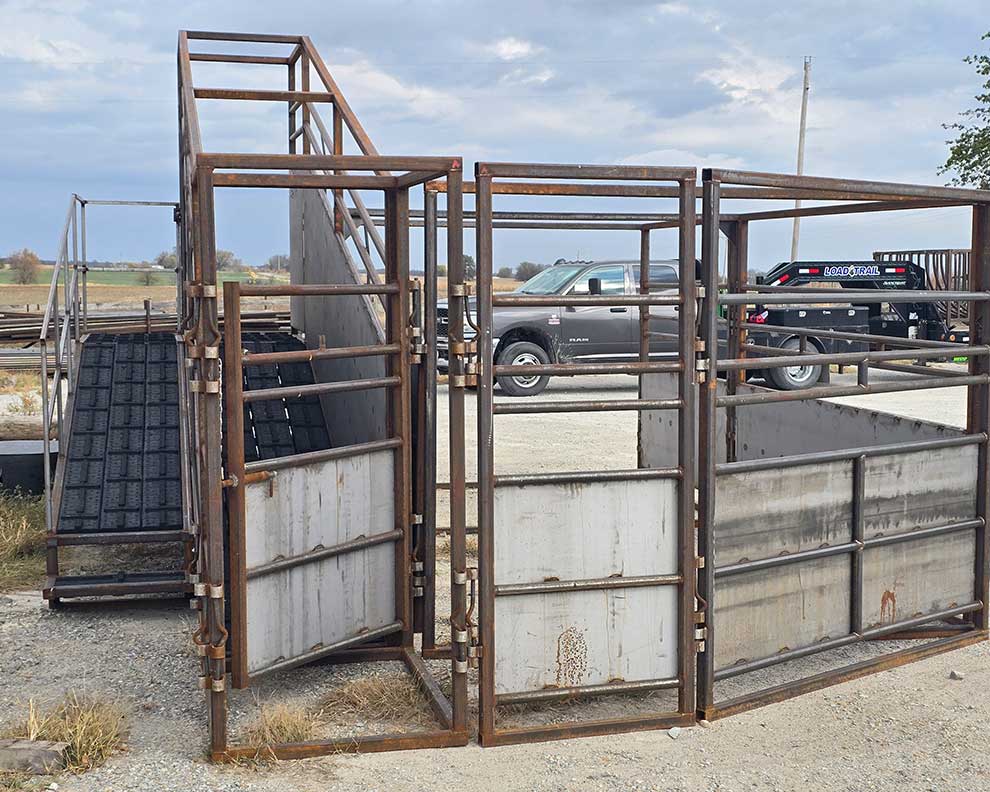

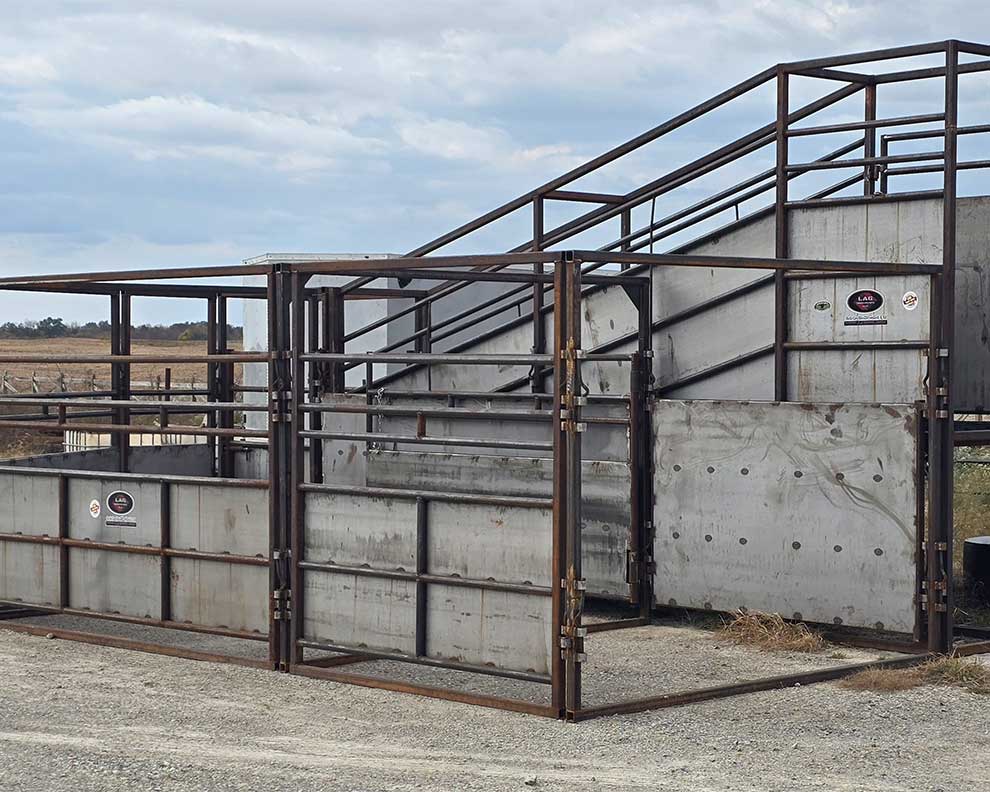

Stationary Loading Chutes

• Overall length: 23′
• Ramp: 14′ with 4′ flat top at the truck and 5′ rear for ground load diverter
• Overall width: 92″
• Catwalk width: 24″
• Ground load and pot ramp width: 30″ ID
• Overall height: 7′ to the top and 11′ tall at the front
• Approximate weight: 7500 lbs

Portable Loading Chutes

• Overall length: 14′
• Inside width: 30″

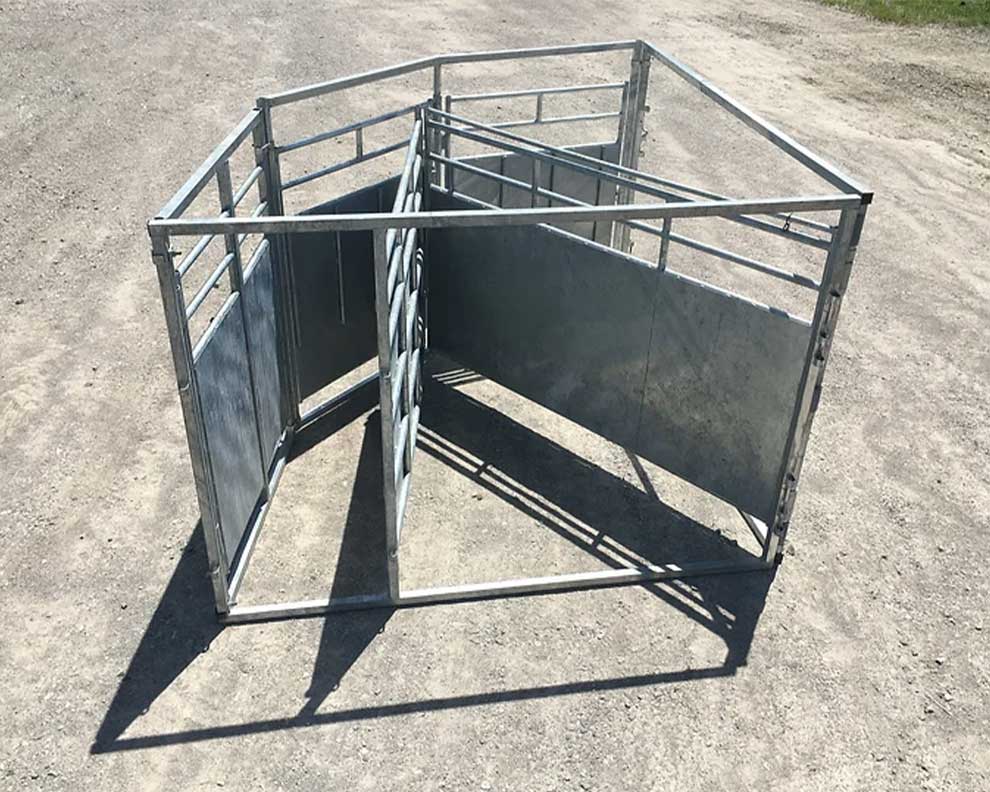

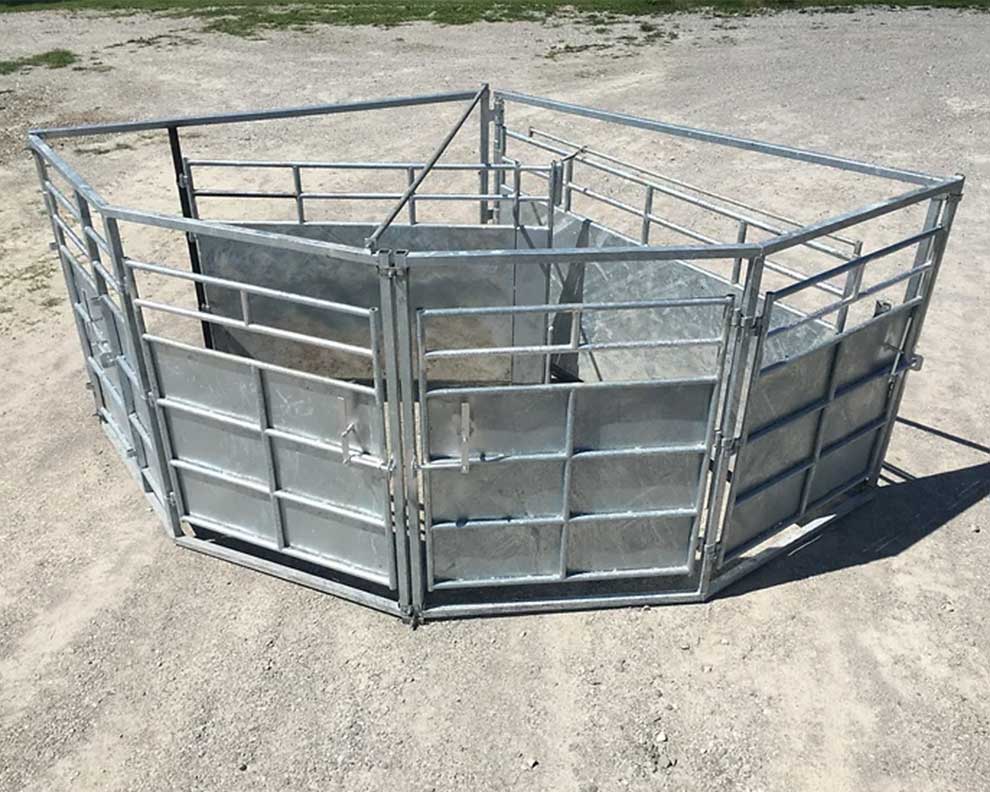

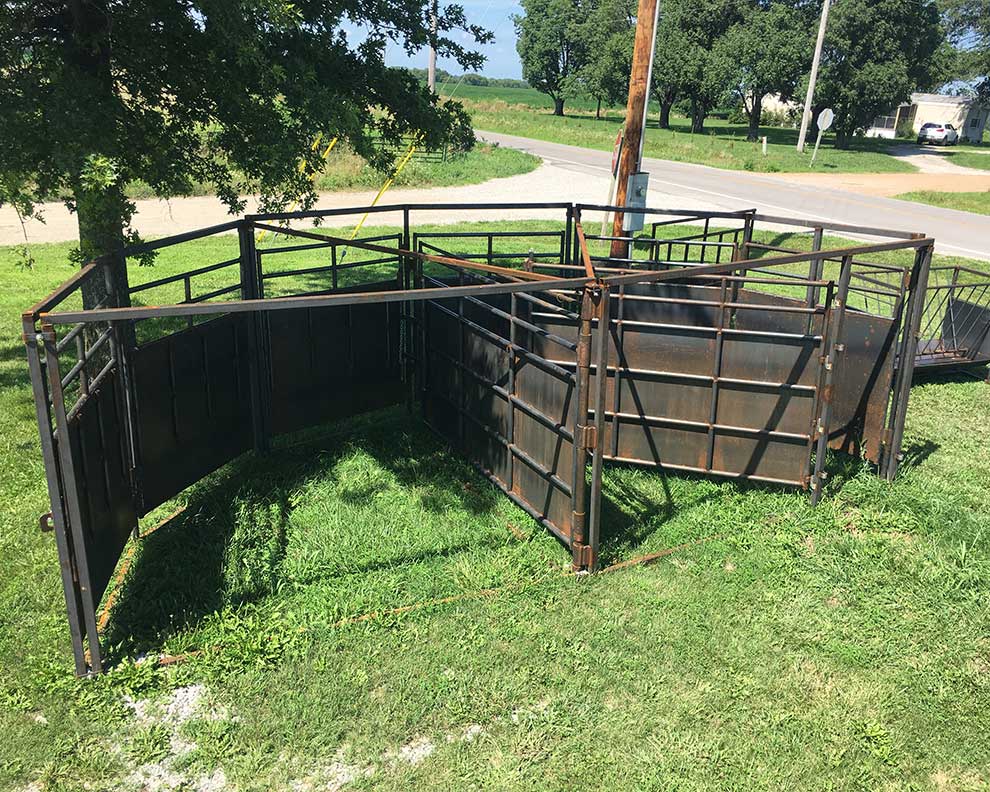

• Angled sections for easy access all around the crowding tub
• 5′ exits with cowboy latches around the perimeter
• Dual 30″ exits and eliminator gate for improved control and eliminating pie-shaped corners
• Built with new #1 steel, 2″ x 2″ x 11ga square tubing frames
• High tensile tubing rails and 14ga sheeting for durability
• Crowding gate and eliminator gate are made with 1 5/8″ x .100 tubing for extra strength
• Sheet height of 57 1/2″ for uniformity and easy reach
• 16″ latch bars around the crowding tub for automatic catching as the gate is pushed

• Hot-dipped galvanization for extended durability

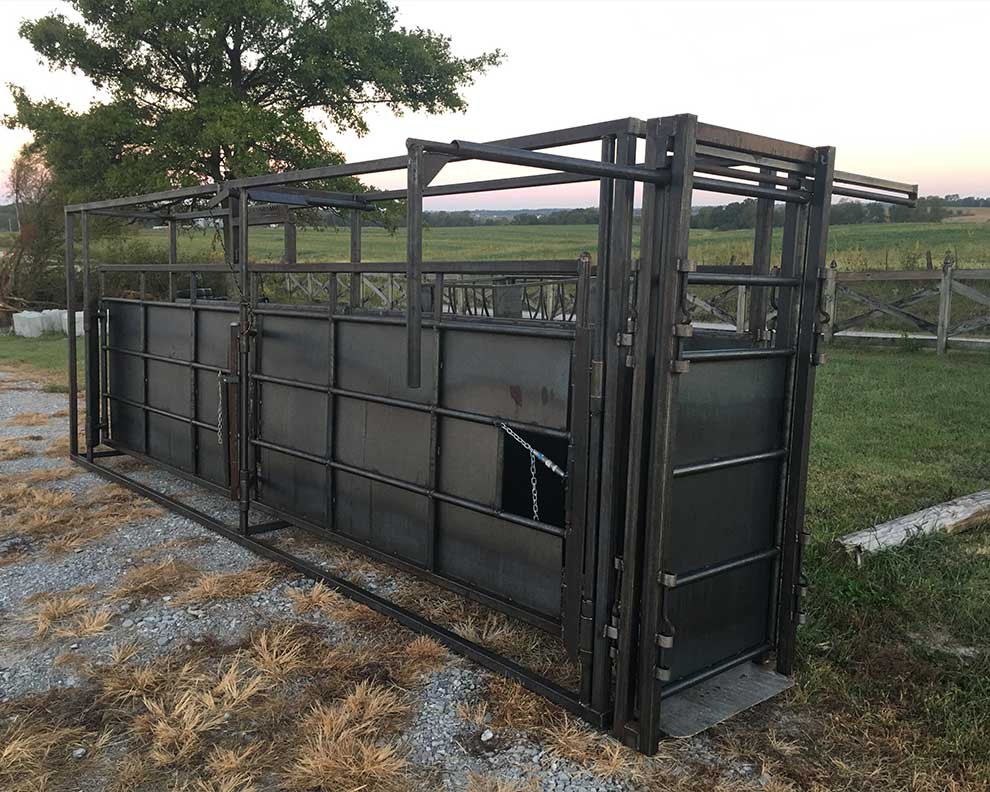

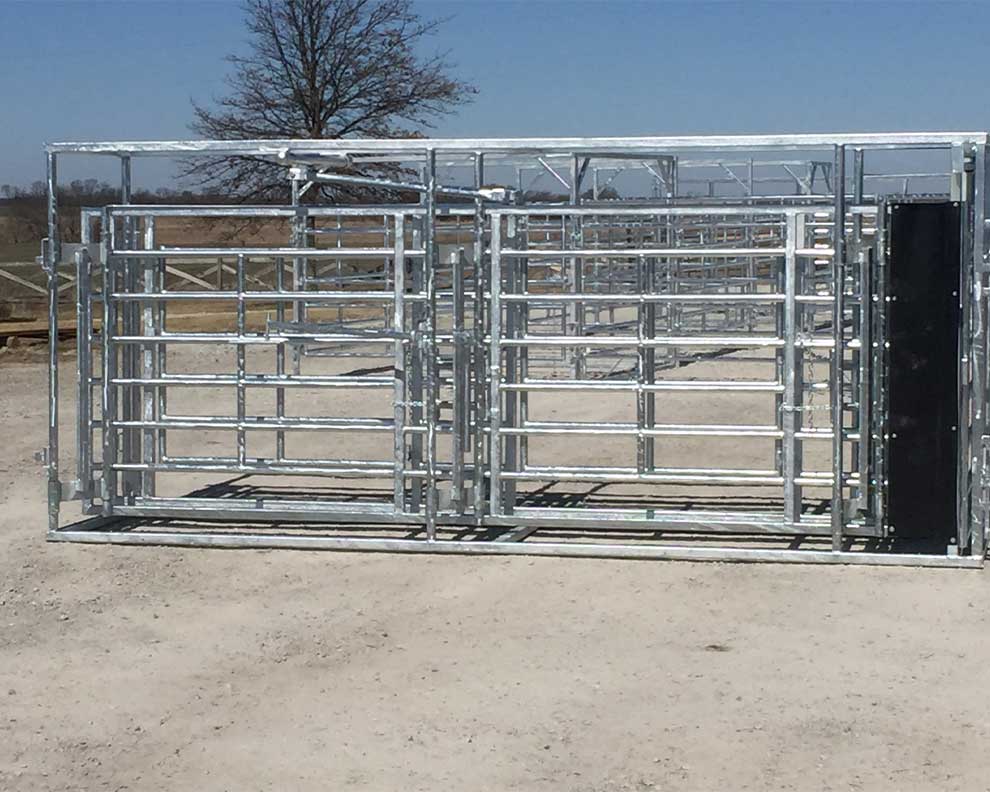

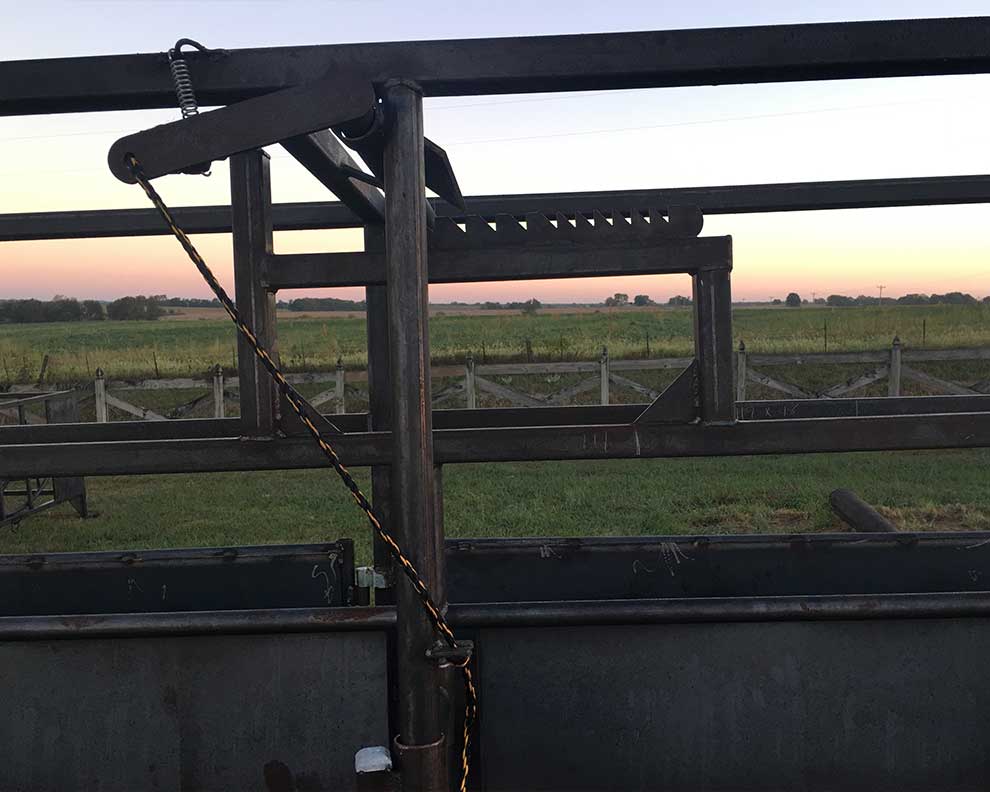

• Adjustable alleyways made from new #1 steel
• Easily adjust from 30″ to 18″ with ratcheting lock
• Available in left hand or right hand configuration, can be narrower or wider with a 12″ adjustment range
• 7′ tall in standard sizes of 10′, 12′, 16′, 20′, 24′, and 8′ scale alleyway with dual sliding gates
• Framework of 2″ square tubing and 1 1/2″ P.S. Schedule 40 Pipe hinge posts
• Rails made of 1 1/2″ x 14ga High Tensile round tubing
• Sheet height up to 57 1/2″ for easy access to calves
• Sold with horizontal sliding gate or pivot gate, with spring loaded no backs
• Additional options include exit gates, drop gates, palpation cage, extra sliding gates, and wheel kits

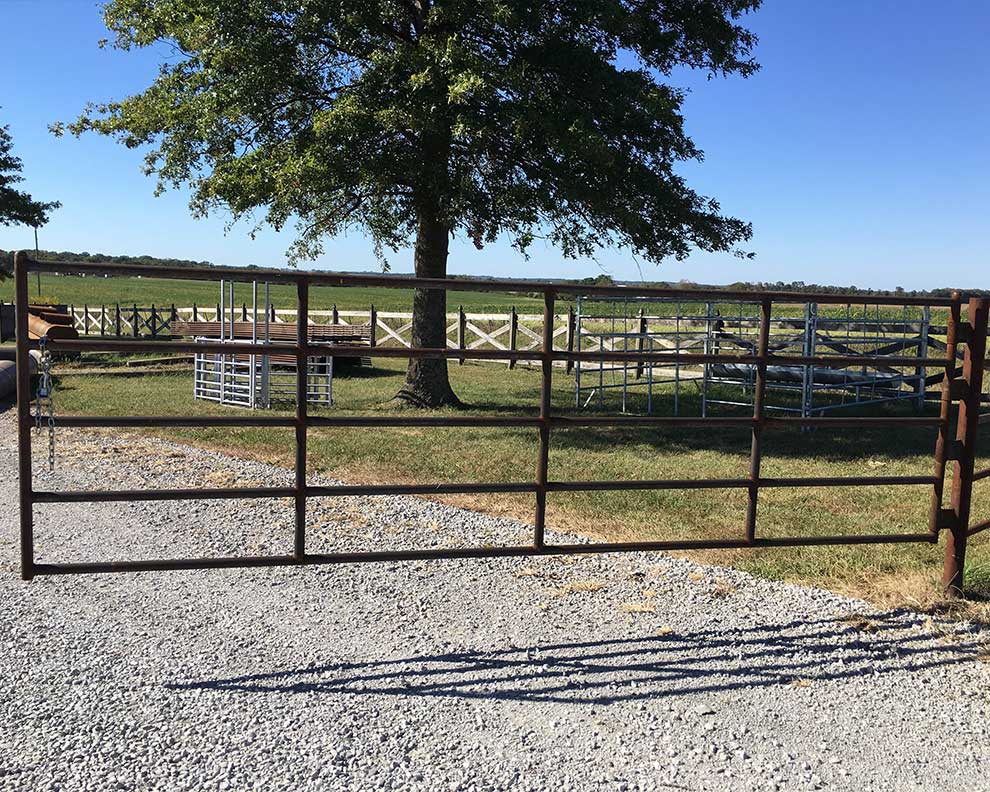

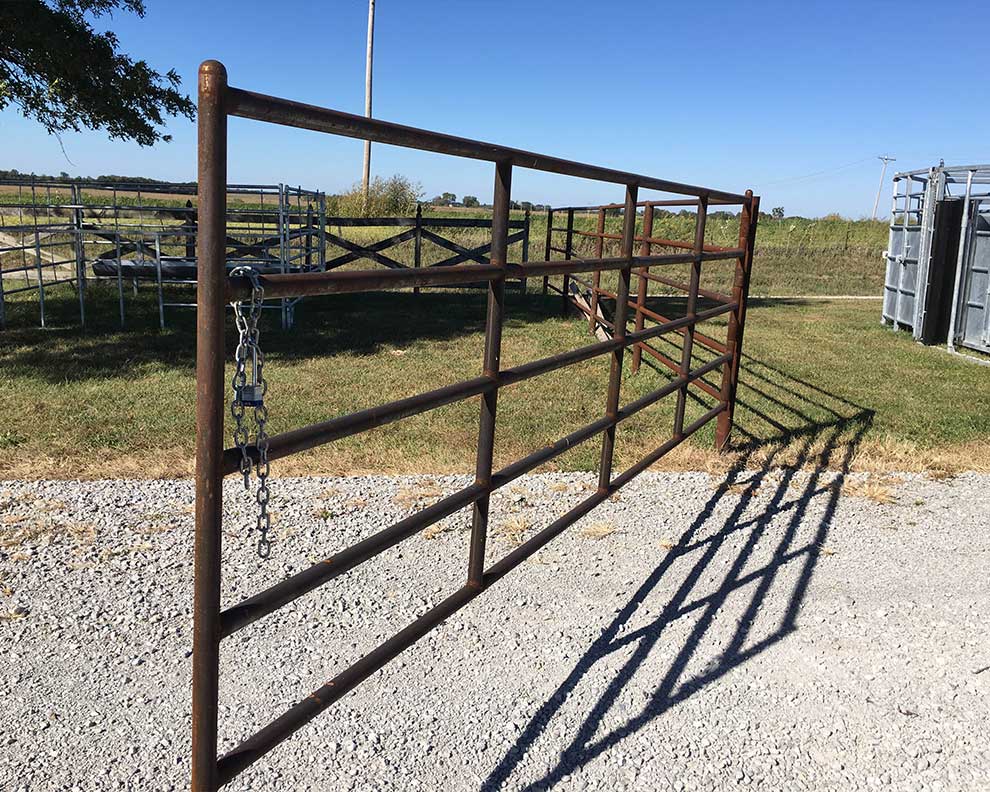

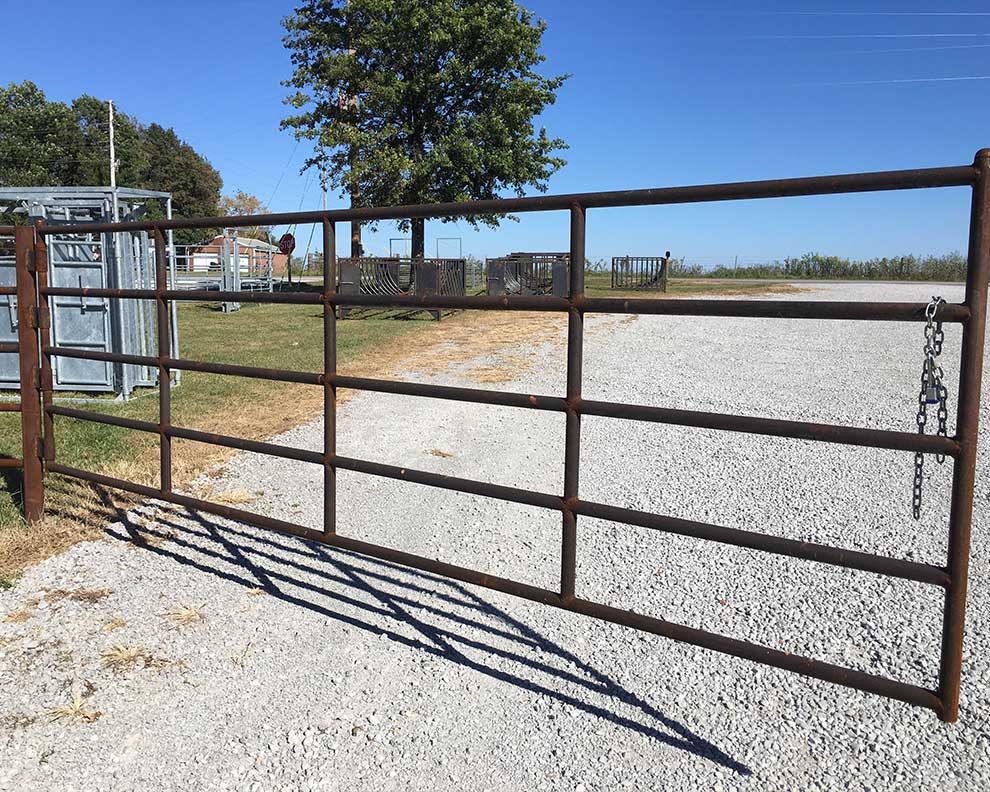

• Custom-built gates to fit any required opening
• Made with 1 5/8” OD pipe with .100 wall for strength
• Rails and uprights coped for maximum durability
• Spaced less than 48” apart for added strength
• Available with built-in spring latches, slide latches, and 3/16” proof chain and latch
• Options for steel pipe with weld-style hinges or bolt-on hinges for wood posts
• Available in 5 rail, 6 rail (49” tall), or 7 rail (60” tall) for a uniform appearance

• Lightweight standard-duty gates ideal for larger lots, pastures, and driveway entries
• Built with 1 5/8” x 14ga round tubing and 5/8” solid rod braces
• Rails coped to fit end posts for a professional appearance
• Rod uprights spaced 40” or less for durability
• Customizable lengths and suitable for wood or steel post hinges
• Standard 3/16” chain and latch included, with options for spring latches or slide latches
• Available in 5 rail, 6 rail (49” tall), or 7 rail (60” tall) for a uniform appearance

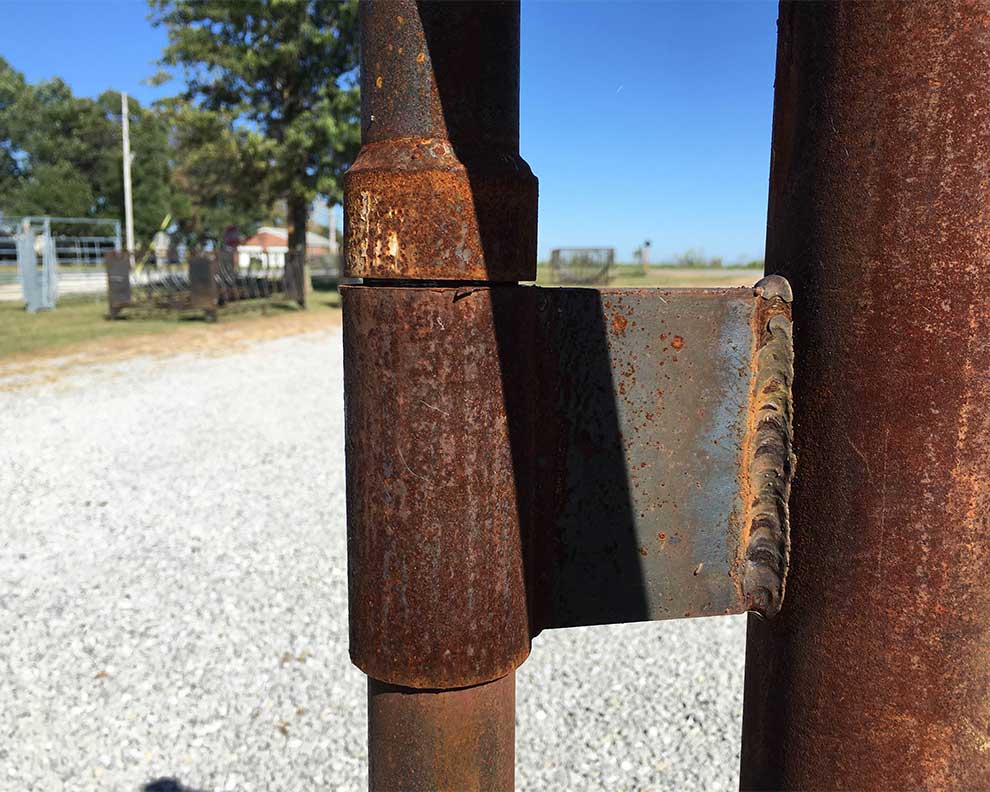

• Hinges
  • Weld-on style hinges
  • Wood style hinges
  • Square tube hinges
  • Bolt-on wood hinges
  • Universal hinges
• Latches
  • 3/16” Chain and Chain Latch
  • Spring latch with Strike Plate
  • Slide bolt latch
  • Custom style latches available upon request

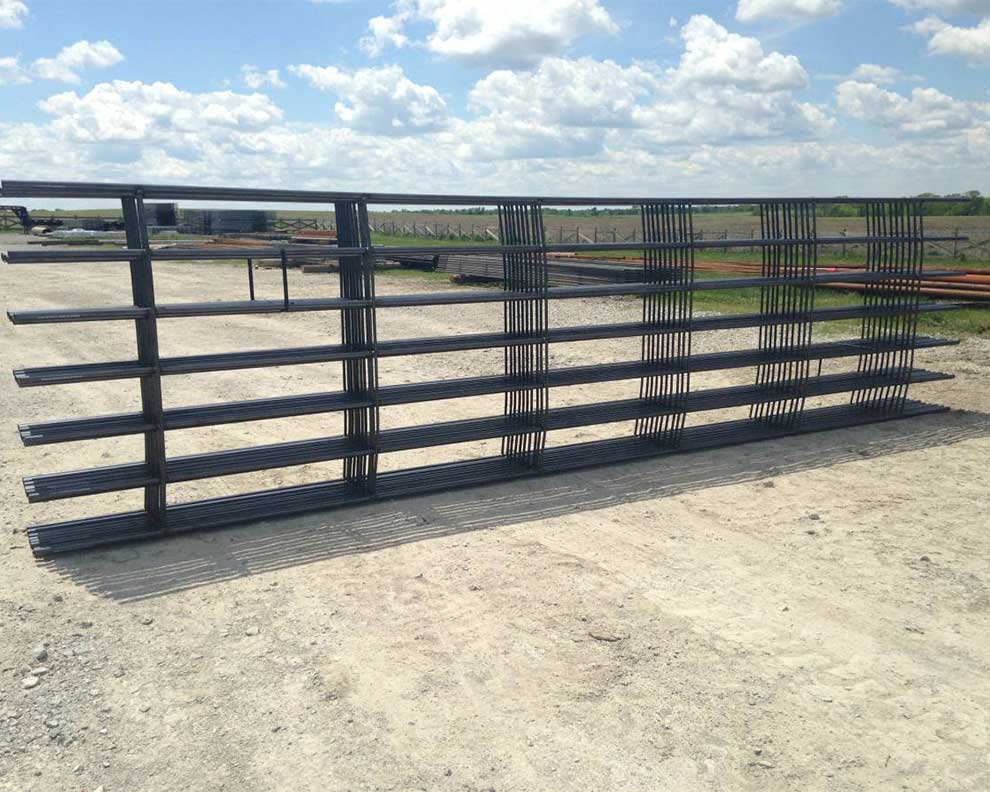

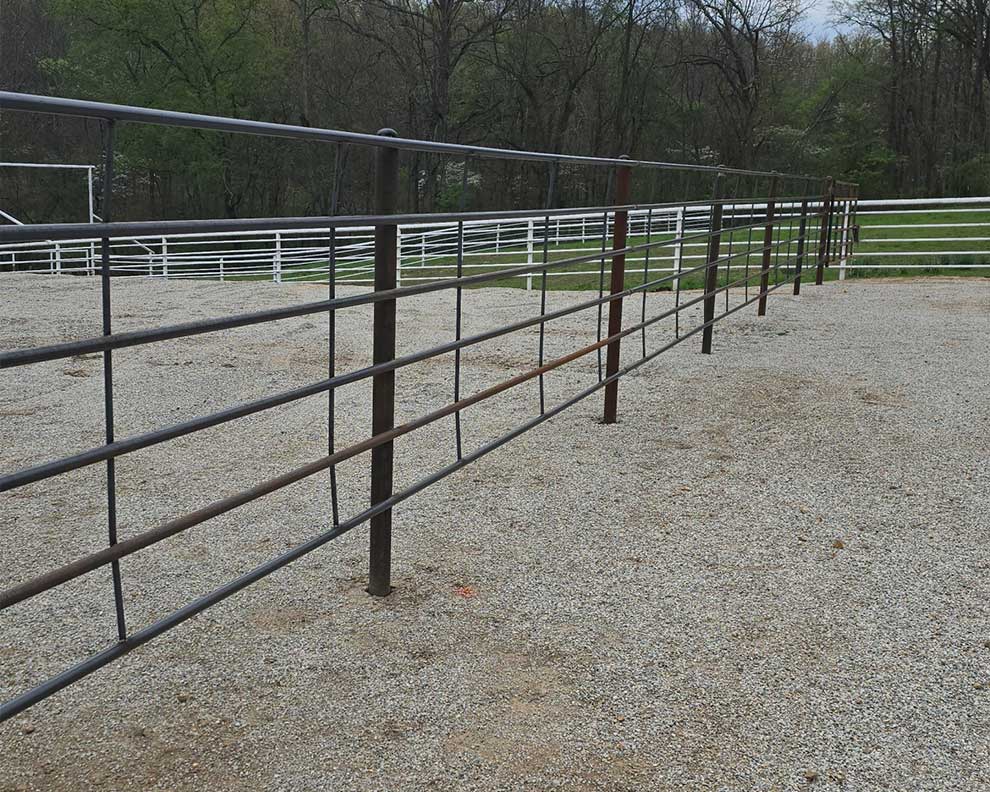

• Choice of 4 or 6 vertical braces
• Braces made with 5/8” solid rod for durability
• Strong design ensures fence can withstand pressure and abuse
• Ideal for posts spaced 10′ apart, with bent braces for smooth edges

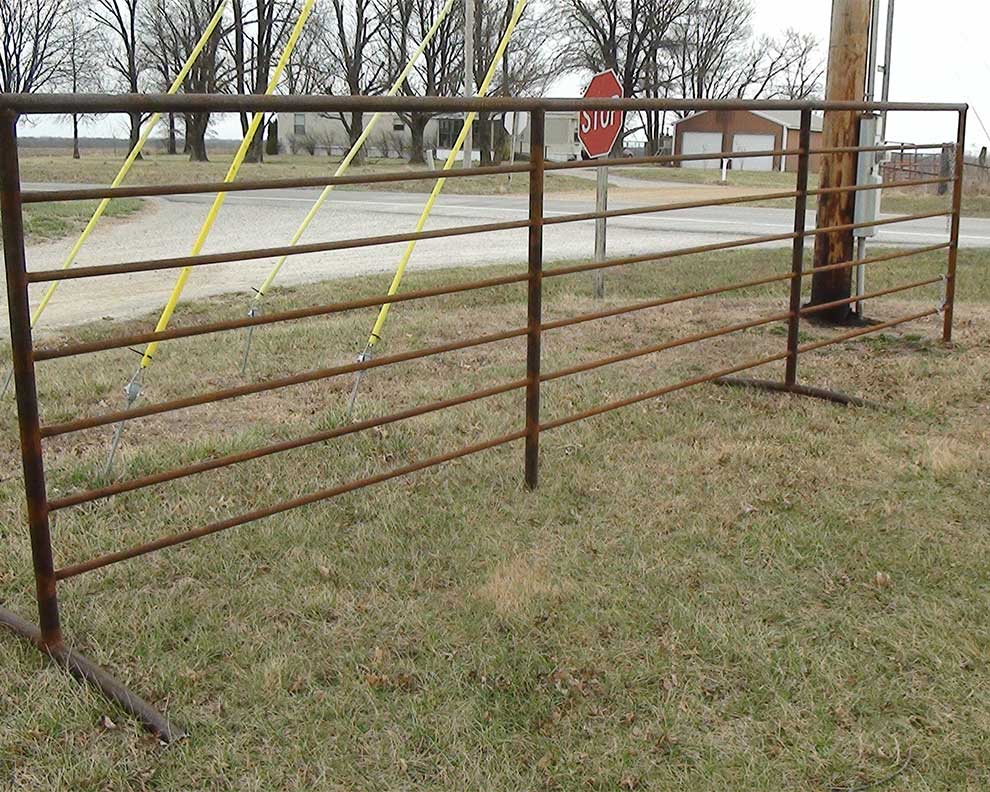

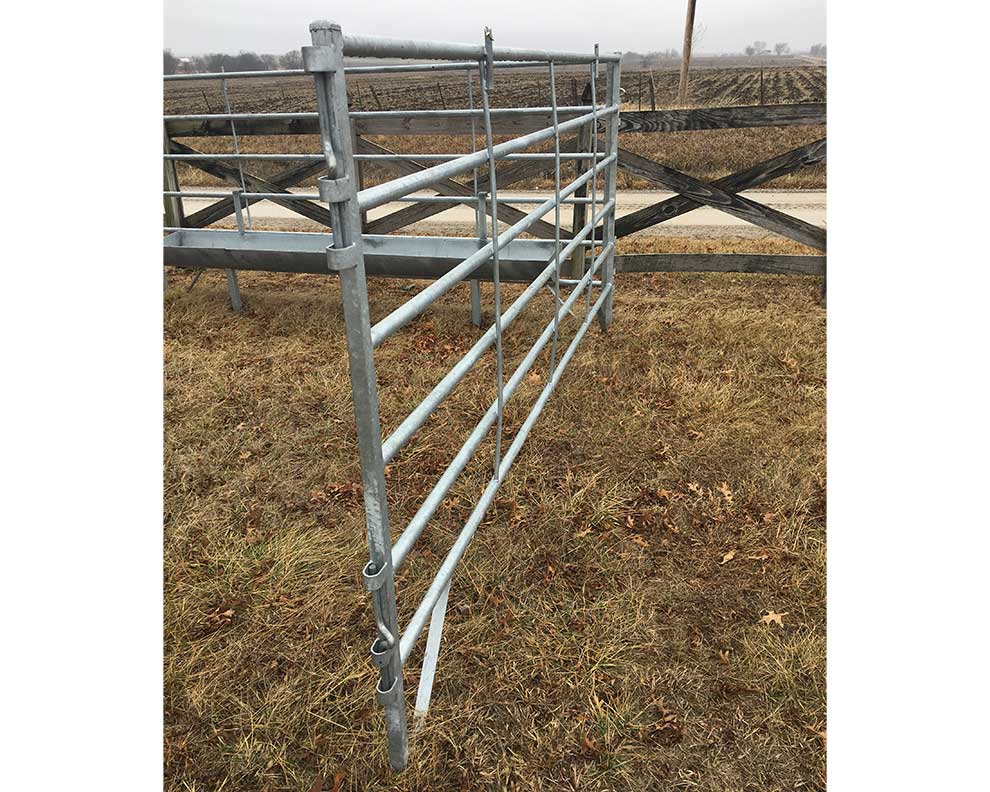

Portable Panels

• Available in 8′, 10′, 12′, and 16′ lengths
• Constructed with 1 5/8” x 14ga round tubing for durability
• Features 1 1/2” square tubing ends and stand at a height of 5′ 8″
• Bottom rail positioned 12” off the ground for stability
• Equipped with mud foot to prevent sinking in the ground
• Solid rod uprights spaced 40” or less for added strength
• Interlocking pins and tabs for secure panel connection, eliminating loose chains

Bow Gates

• Open bow frames facilitate quick, easy, and safe setup of a portable corral
• Bowgate frames are constructed with 2” square tubing and connect to portable panels using pins and tabs
• Gates within the bow frames are made of 1 5/8” x 14ga round tubing, aligned with an overall height of 5’8″
• Gates feature spring pin latches and chains for enhanced safety
• Overall height of bowgates is 7′ to provide ample clearance under top rail
• Standard sizes available in bow-gates and open bow frames are 3′, 6′, 8′, 10′, and 12′

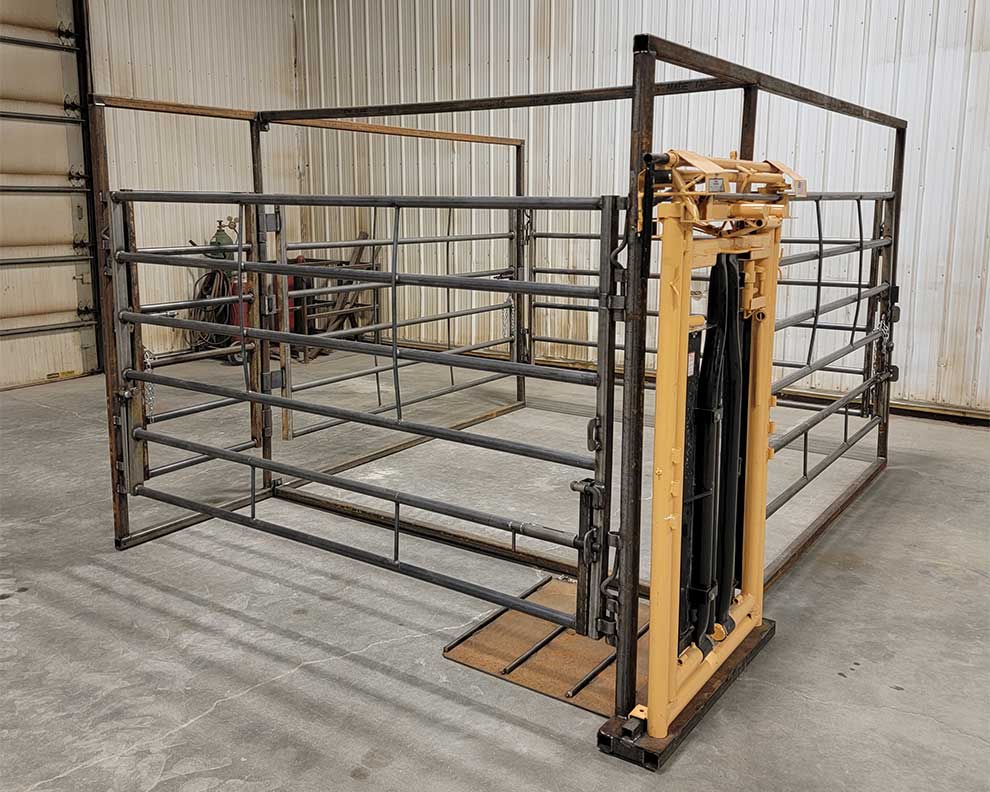

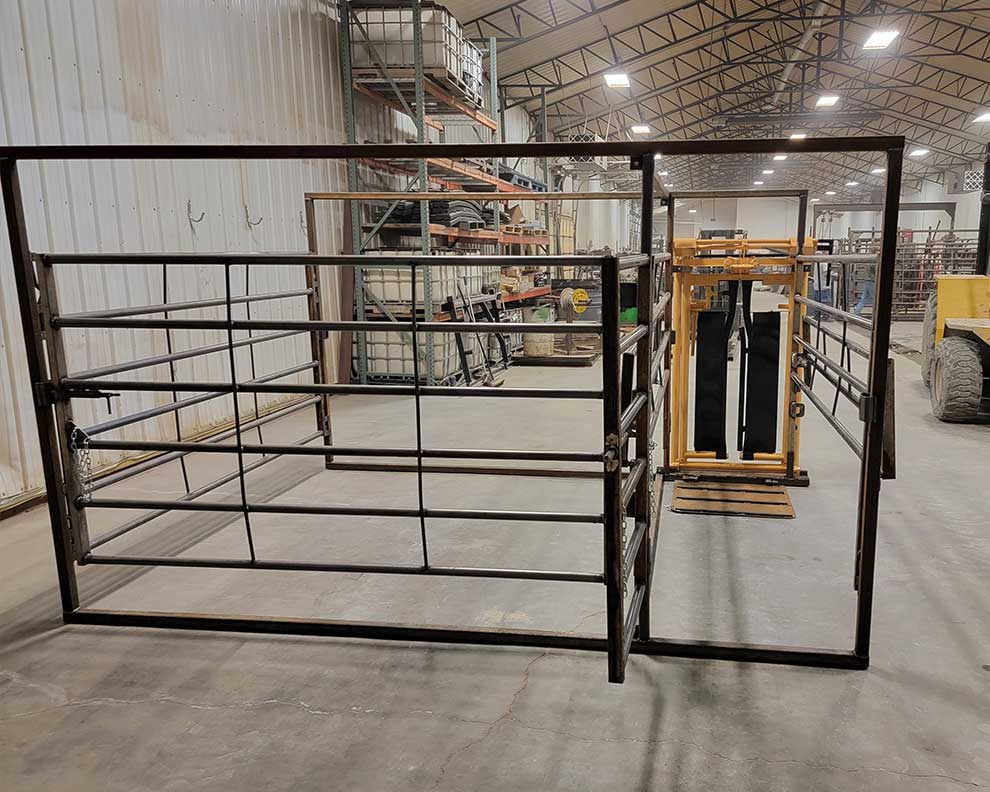

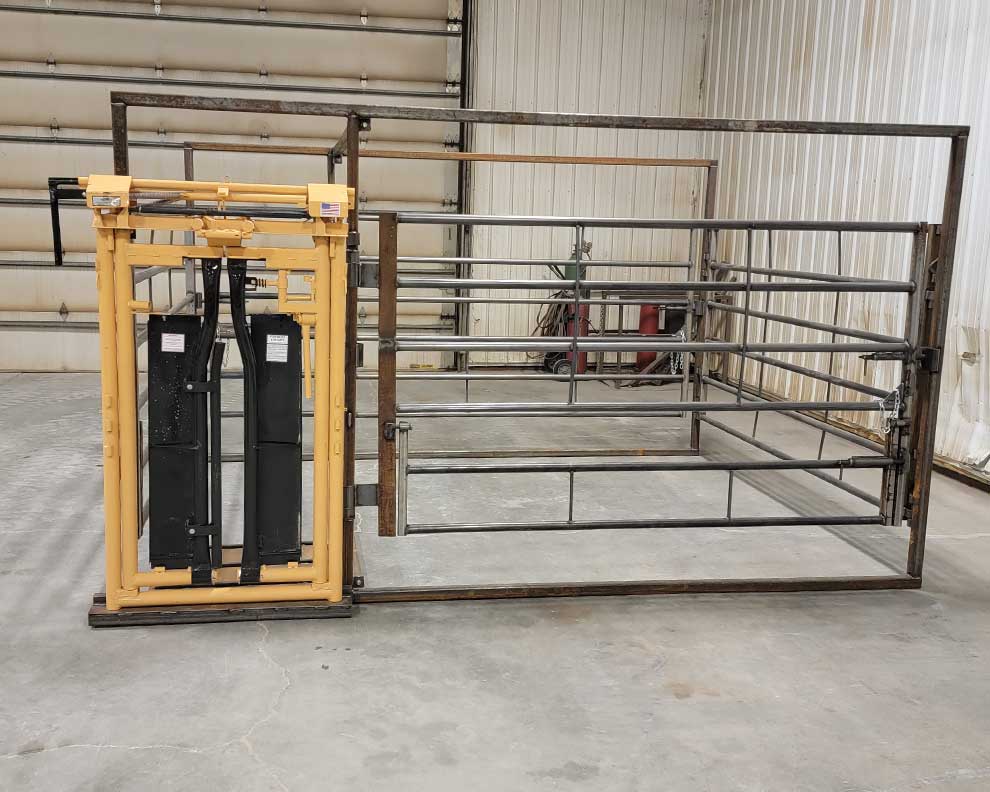

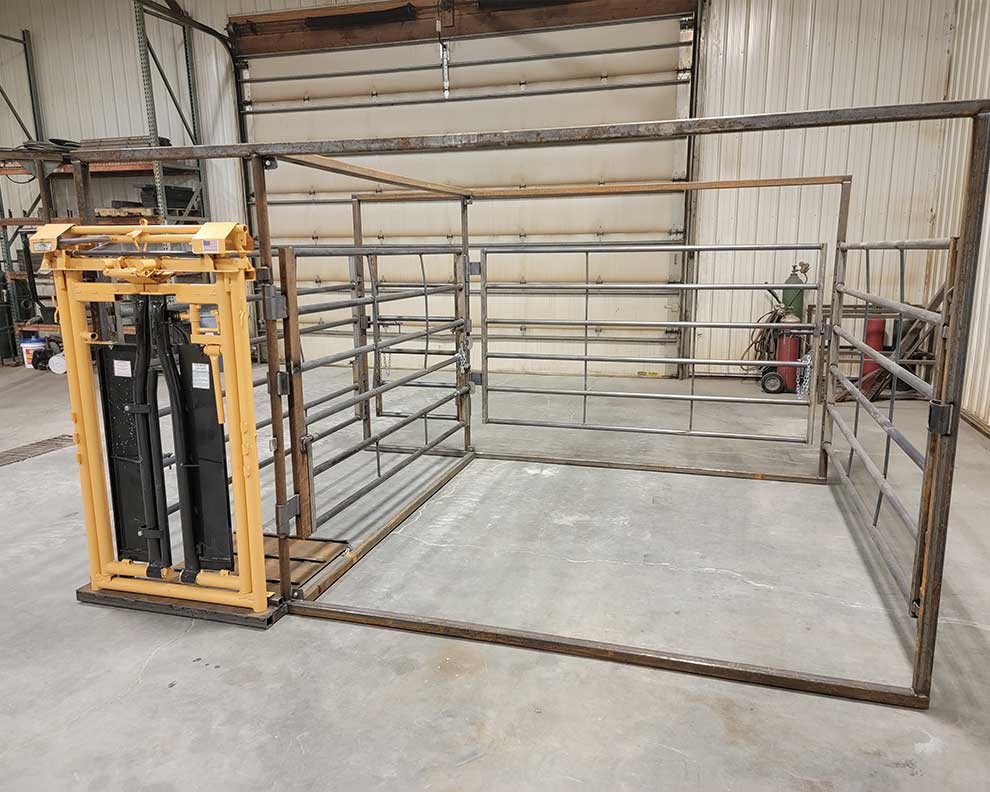

• 12′ x 9′ calving pen with 7′ tall Bowgate frames and 6′ tall gates
• Available in hot-dipped galvanized or bare steel for durability
• Allows cattle to be brought in from the rear or front with gates that crowd and latch
• Flip-up access panels on the side panel and crowd gate for nursing calves or working on animals
• Bowgate frames made with 2″ x 2″ square tubing, panels made with 1 5/8″ x 14ga round tubing and 5/8″ solid rod braces
• Comes standard with For-Most self-catch Head Gate; other headgate options available upon request

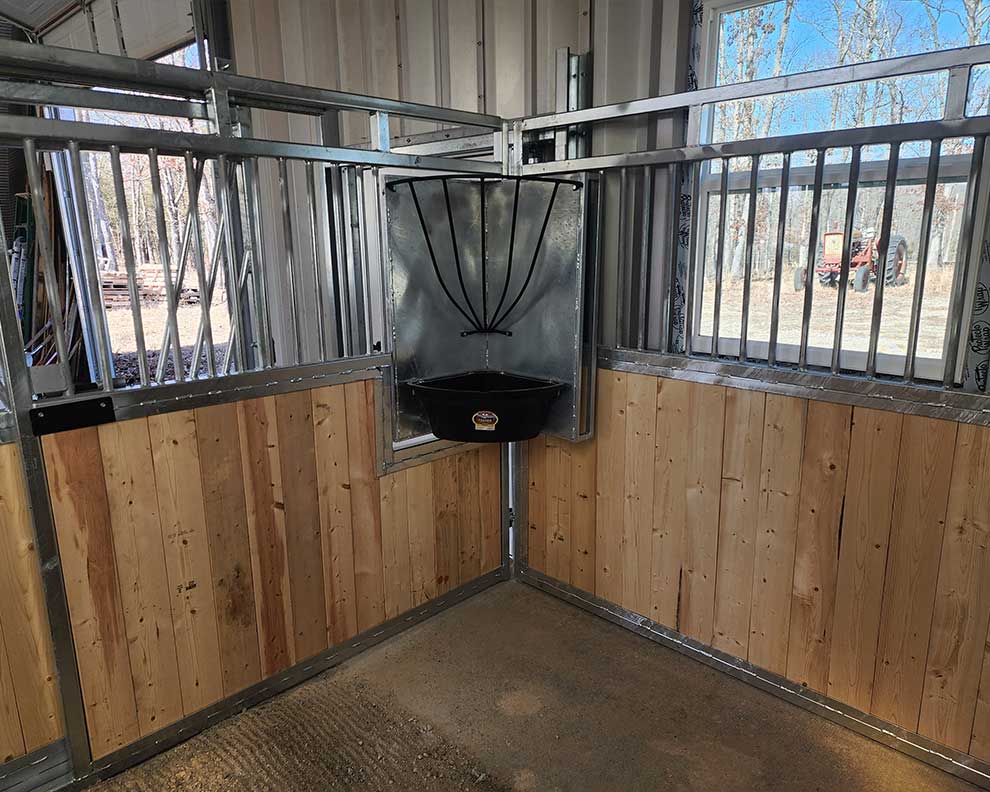

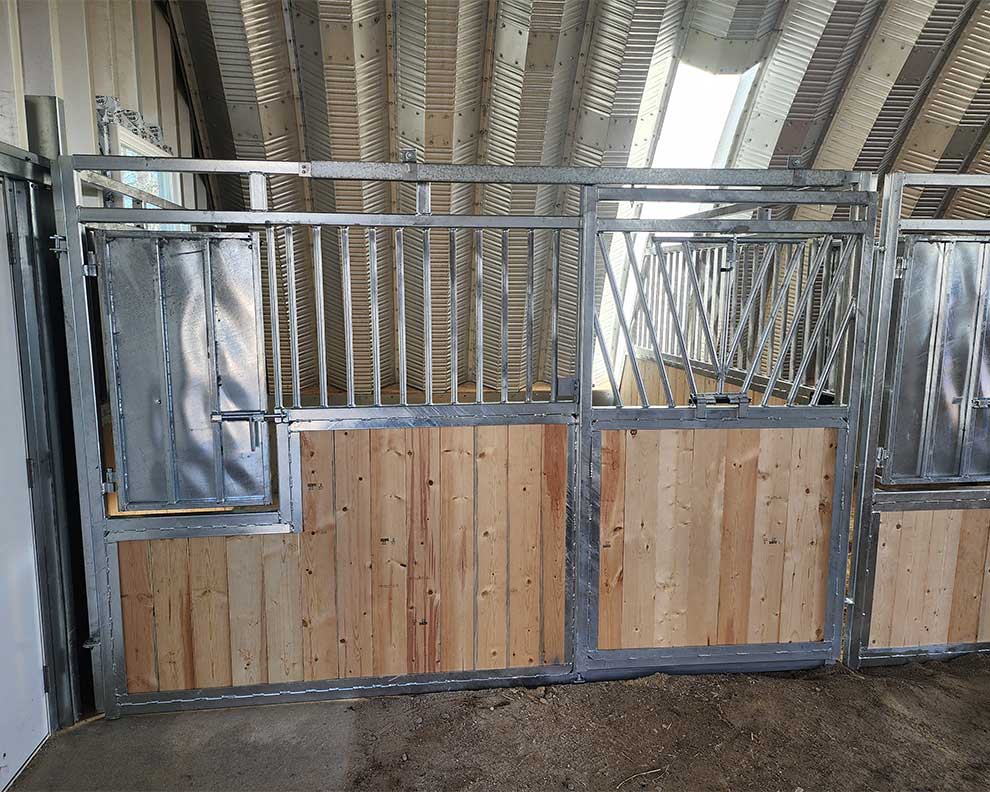

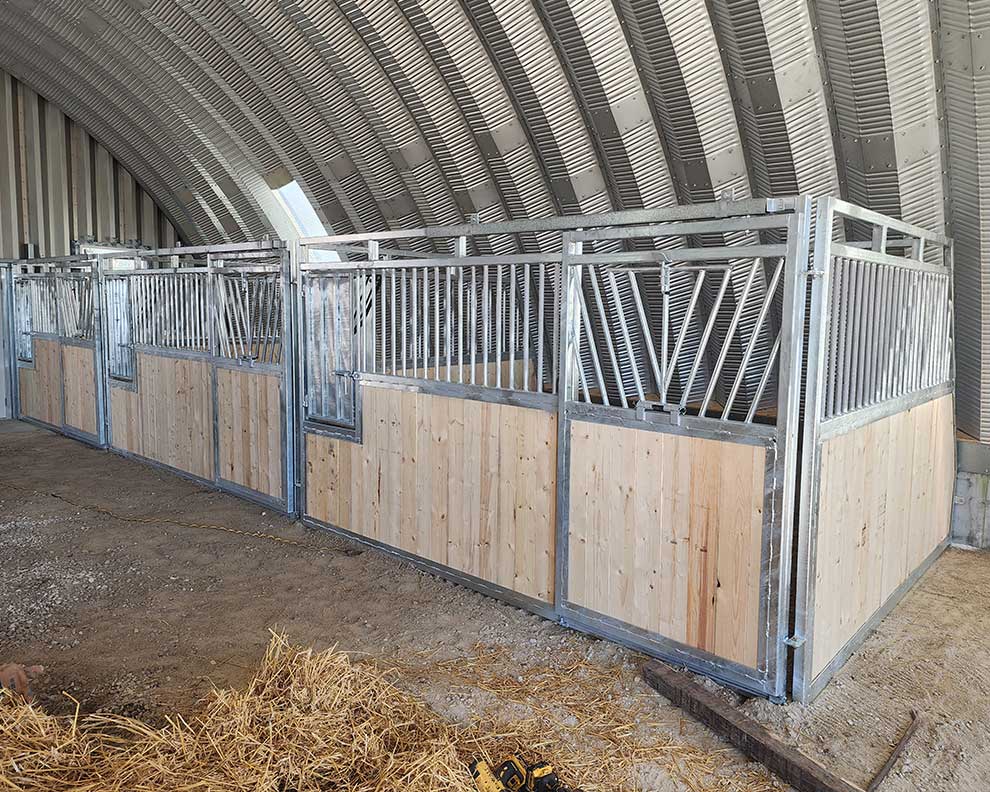

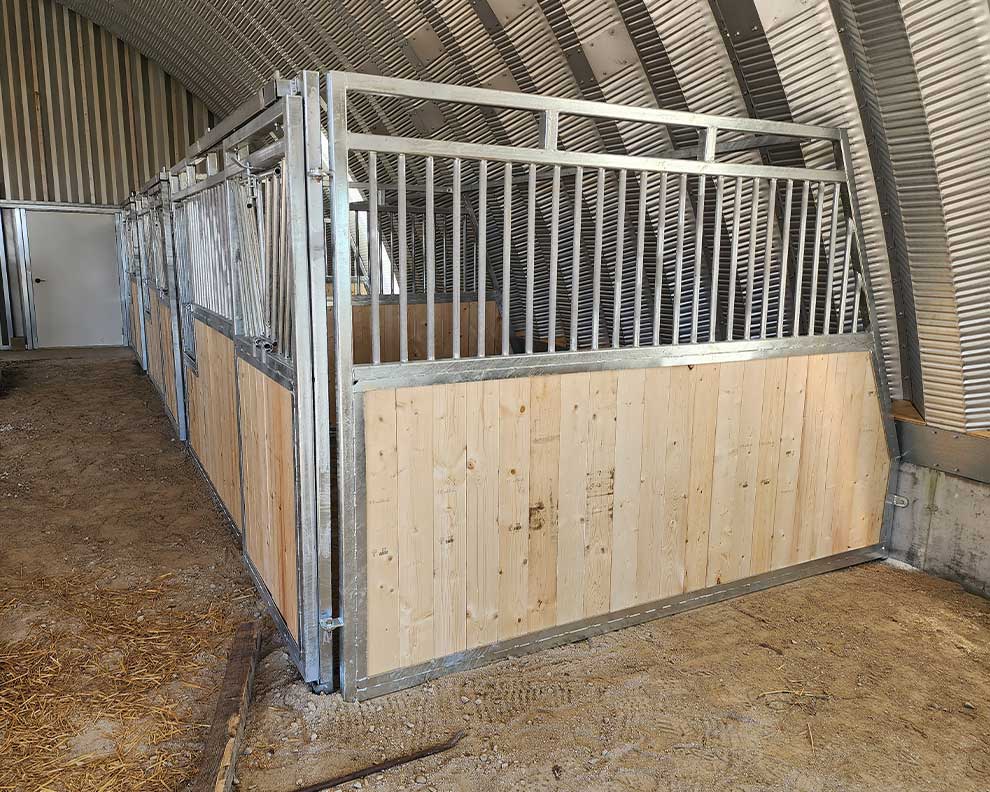

• Horse stalls built with 2×2 square tubing frames (minimum 11ga thickness) and 1″ od 13ga vertical bars spaced 3″ apart
• Overall height of 84″ with 5″ top space for forklift access
• Sliding doors with standard 42″ opening, hung on heavy square barn door track
• Easy bolt-together assembly, customizable for length and height
• Lumber track made with 1 1/2″ x 1/8″ flat strap for strength
• Available in hot-dipped galvanized, bare steel, or powder-coated finishes

J Bunks

• 38″ wide
• Back of the bunk is 12″ taller than the front
• Rolled from 1/4″ plate

Silage Bunks

• 30″ wide
• 14 1/2″ deep
• Rolled from 1/4″ thick plate

Grain Bunks

• 20″ wide
• 9″ deep
• Rolled from 3/16″ thick plate

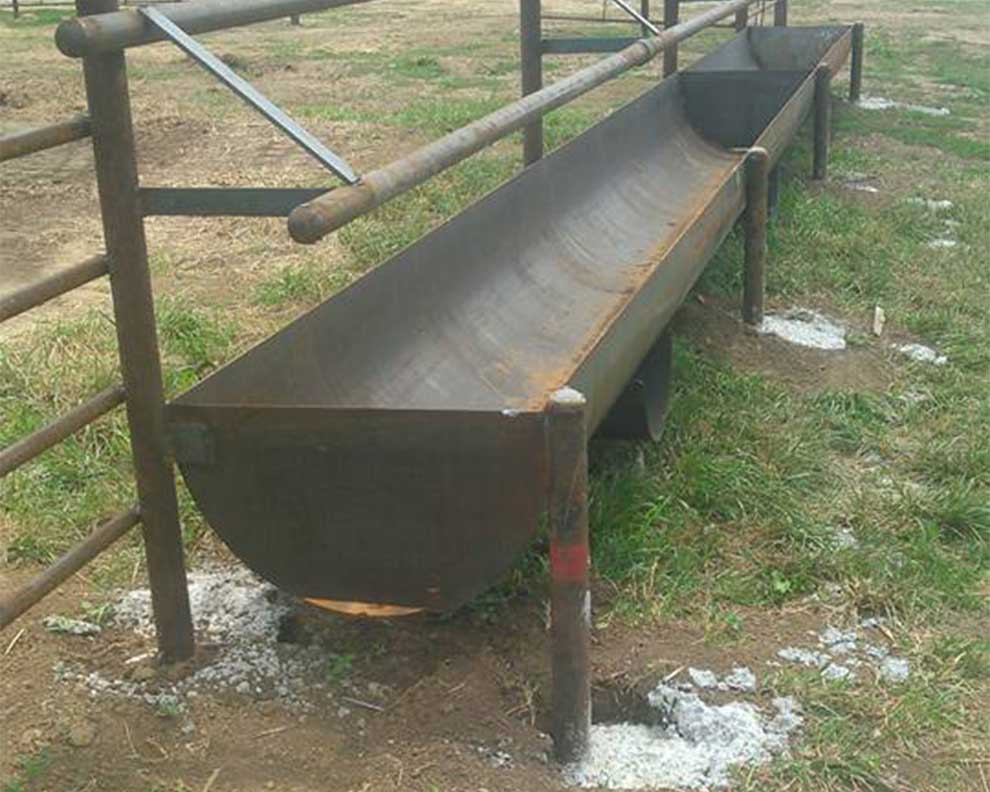

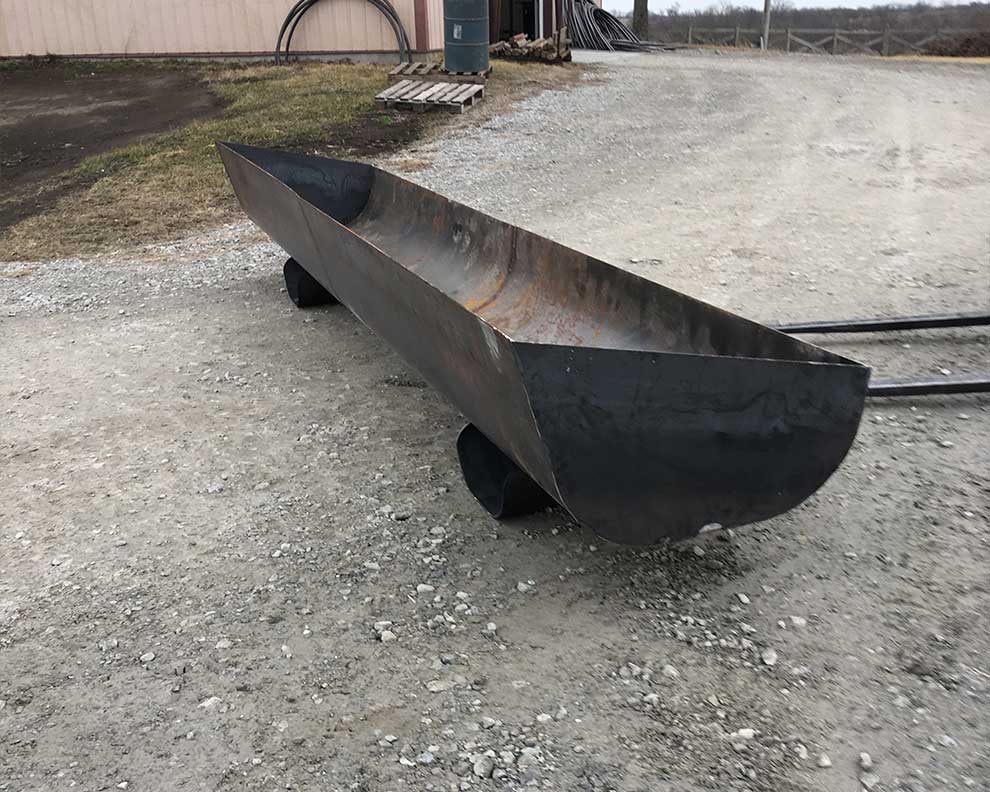

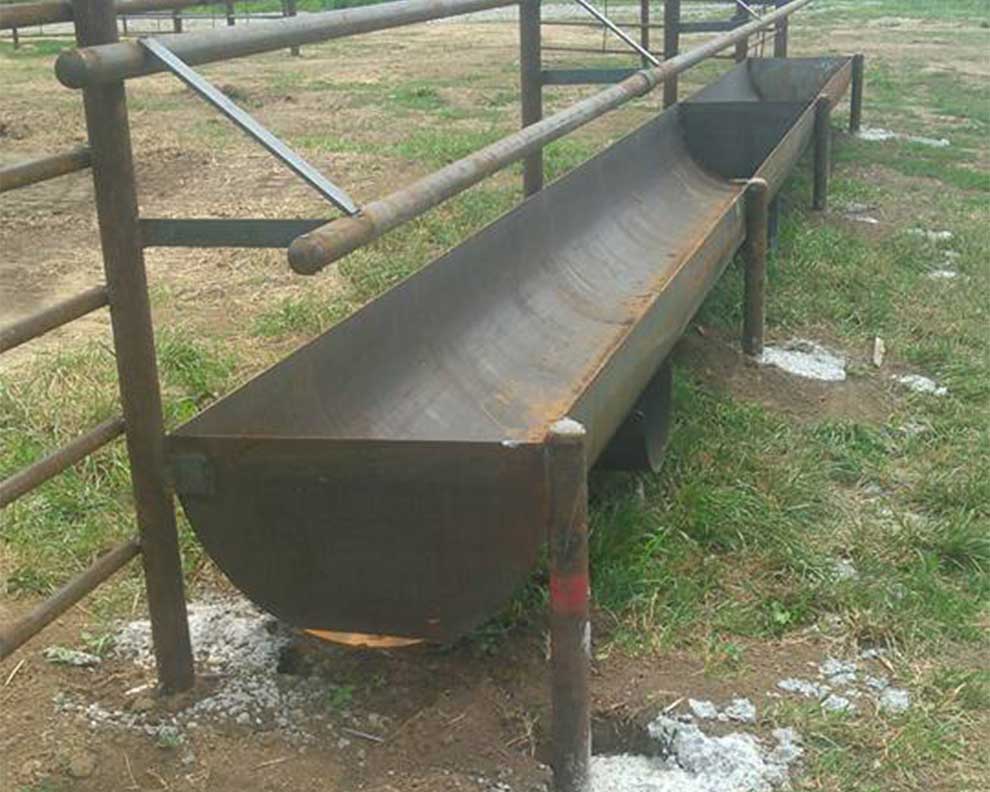

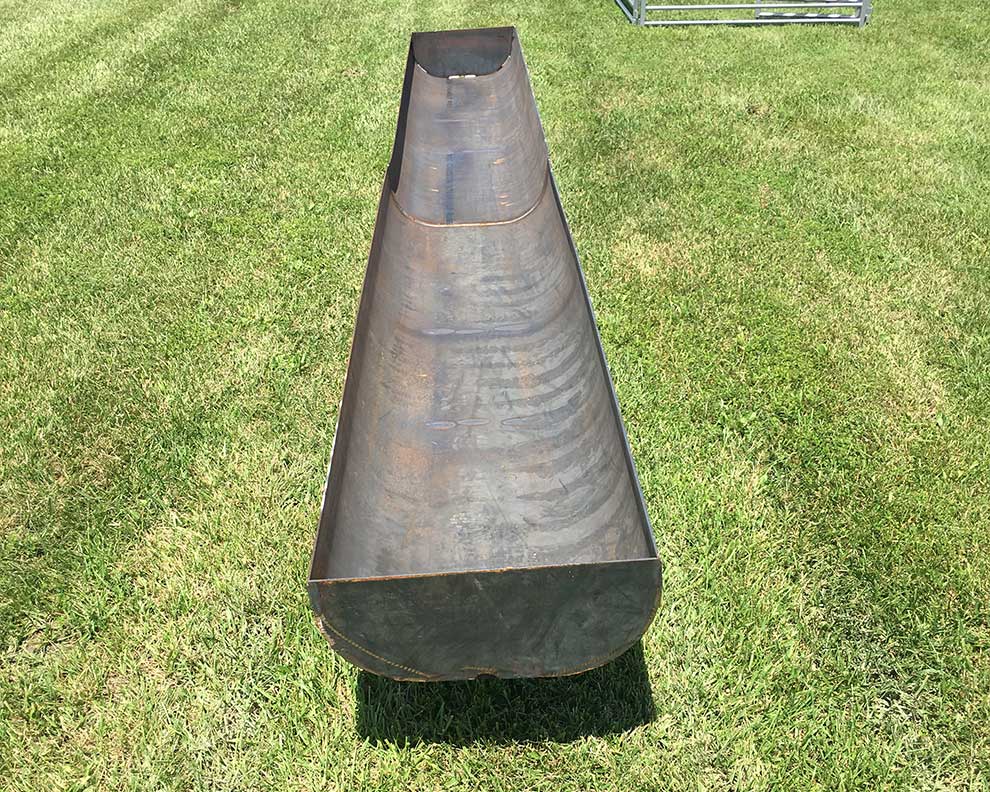

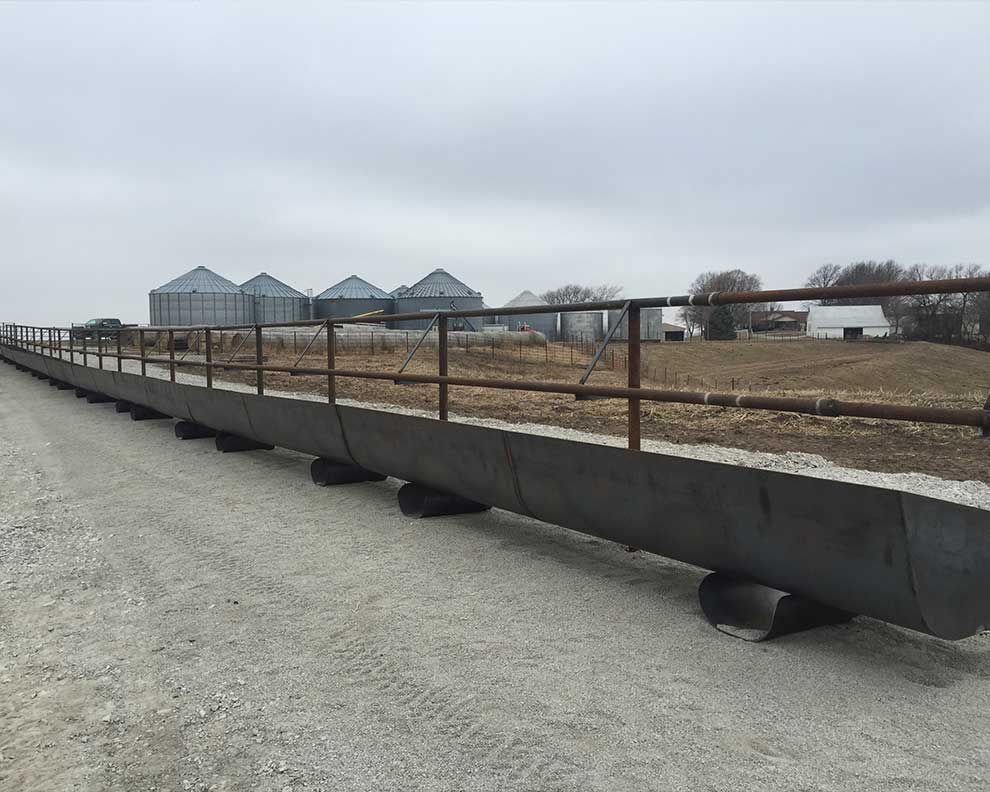

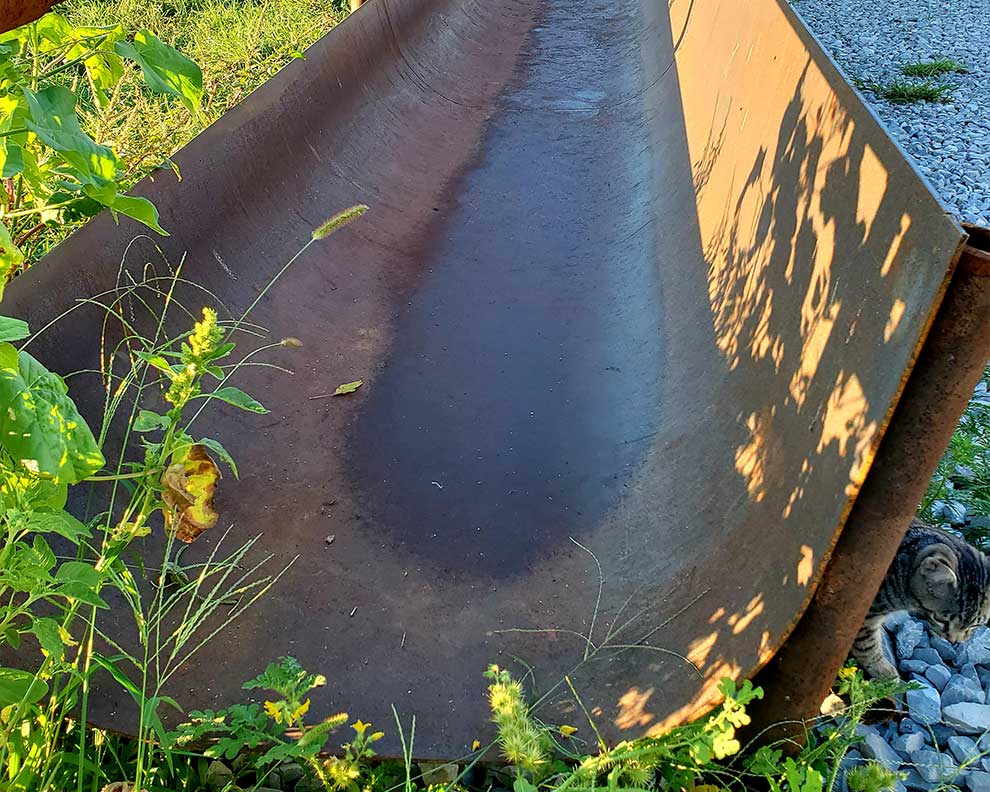

All Bunks

• The feet for the bunks are rolled with a large flat pad for easy dragging and to prevent sinking in mud and manure
• Rolled steel feed bunks have a flat bottom to help animals get back on their feet if they fall in
• Feed cannot pack into the edges as it can in straight-sided bunks
• ALL LAG Rolled Steel Feed Bunks are available in 8′ sections
• They can be purchased as blanks, bunk-building packages, or completed bunks customized to lengths up to 40′

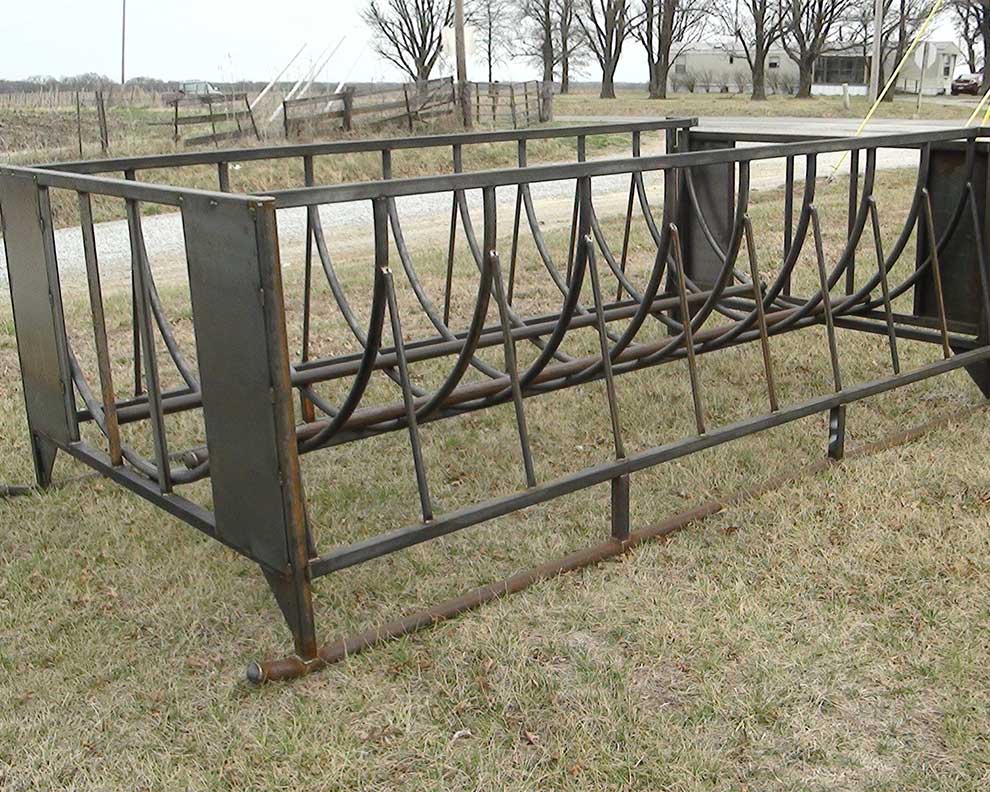

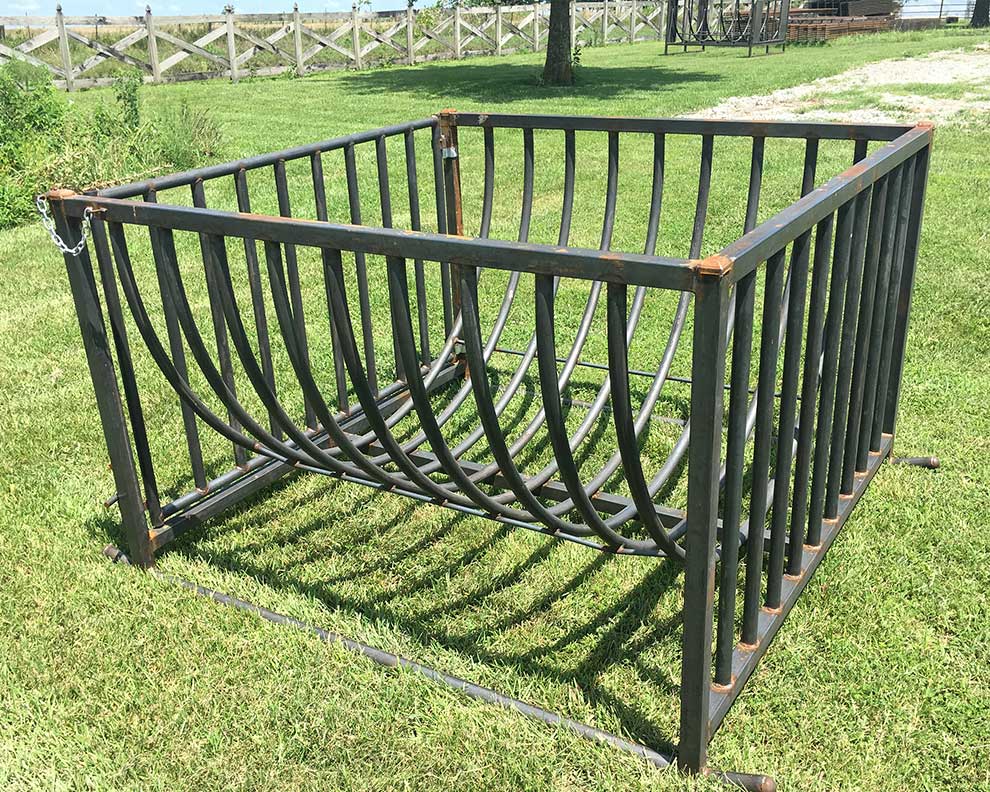

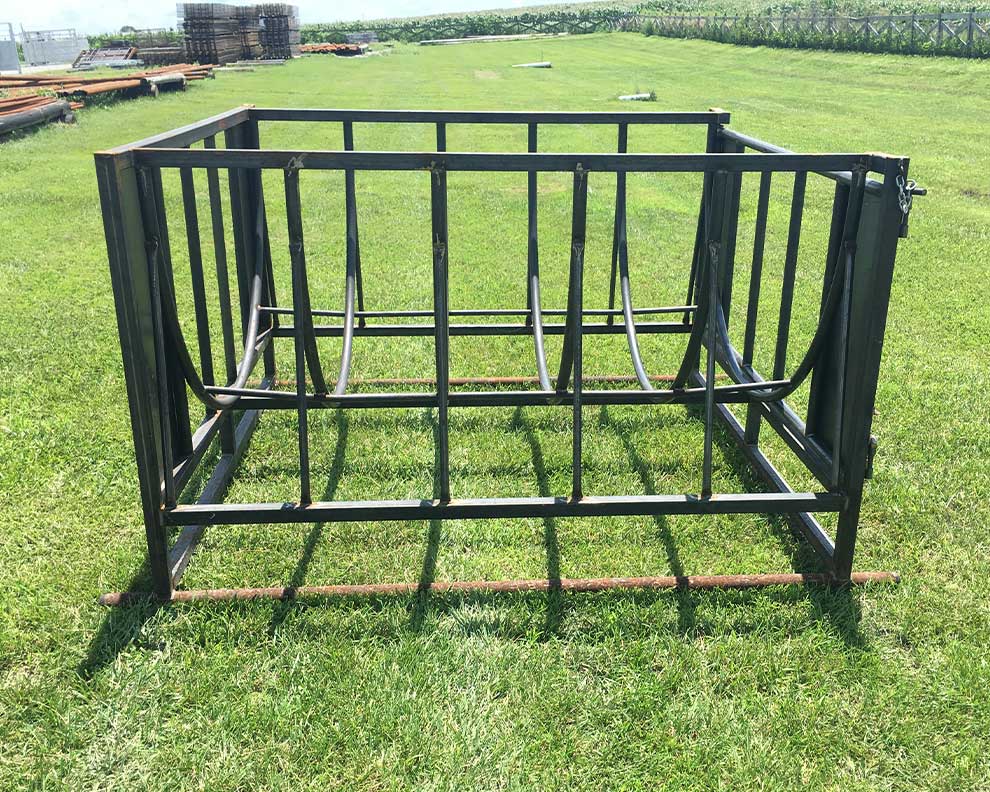

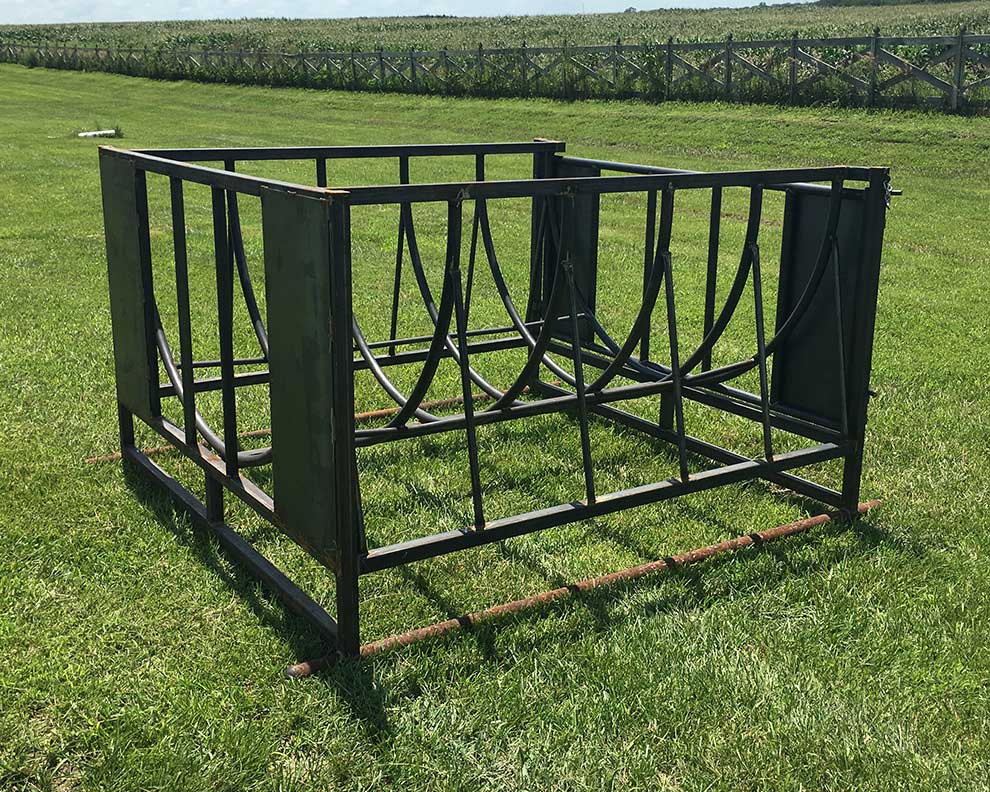

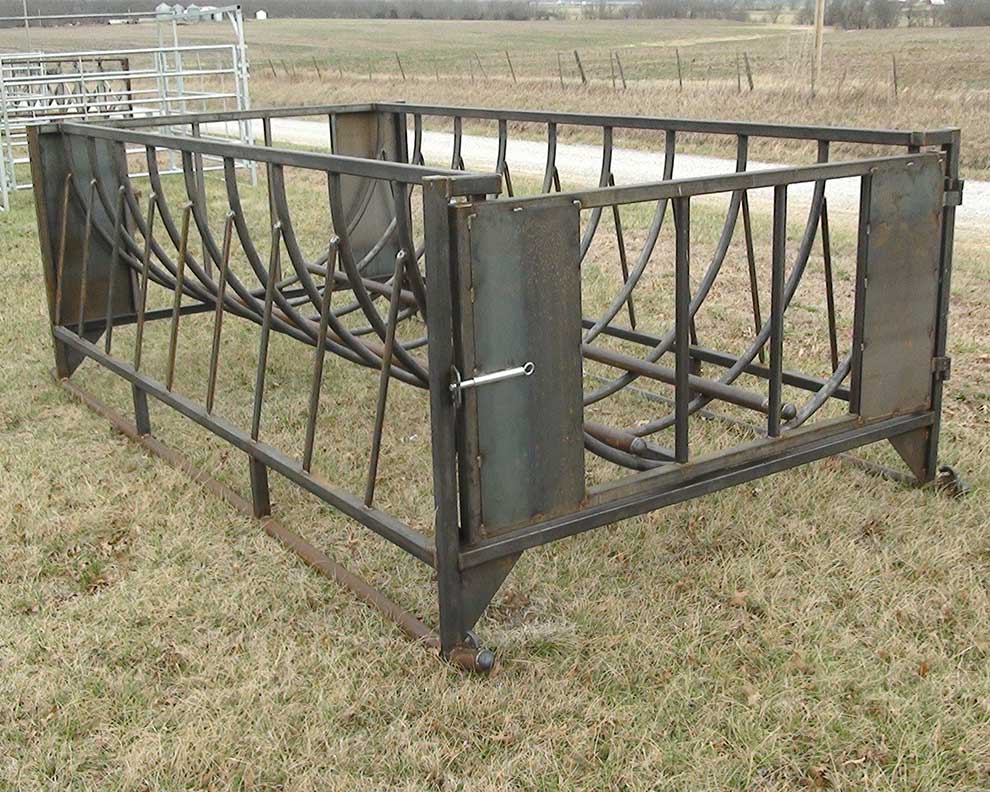

• Cradle style hay saver bale feeders elevate bales off the ground to eliminate waste from bale rot.
• Storage created underneath the feeder prevents cattle from stepping and laying on dropped hay.
• Single cradle style feeders are 90” wide and 7′ long, suitable for 4’x6’ or 5’x6’ bales.
• Feature 2 3/8” heavy pipe runners with 3/8” chain hooks for easy dragging between fields.
• 15” spacing in the gaps allows bulls to eat while preventing calves from entering the feeder.
• Also available in double and triple lengths for different bale configurations.
• All feeders have two 2 3/8” pipes inside to allow bales to slide across, except for sheep and goat feeders.

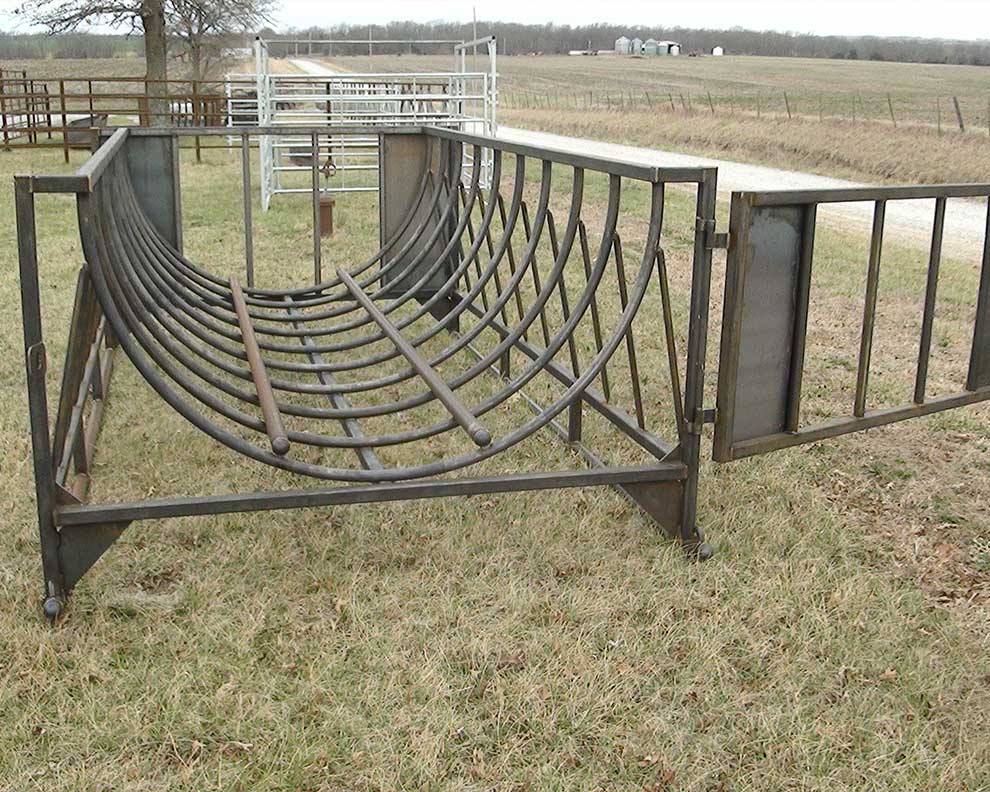

• Options for a gate in the end for easy loading with a rear tractor spike or truck spike.
• Built heavy enough and short enough for loading with a bale bed or tractor and loader over the sides.
• Can be loaded onto a pickup and bale bed with two small pieces of chain, or picked up with pallet/bale forks.

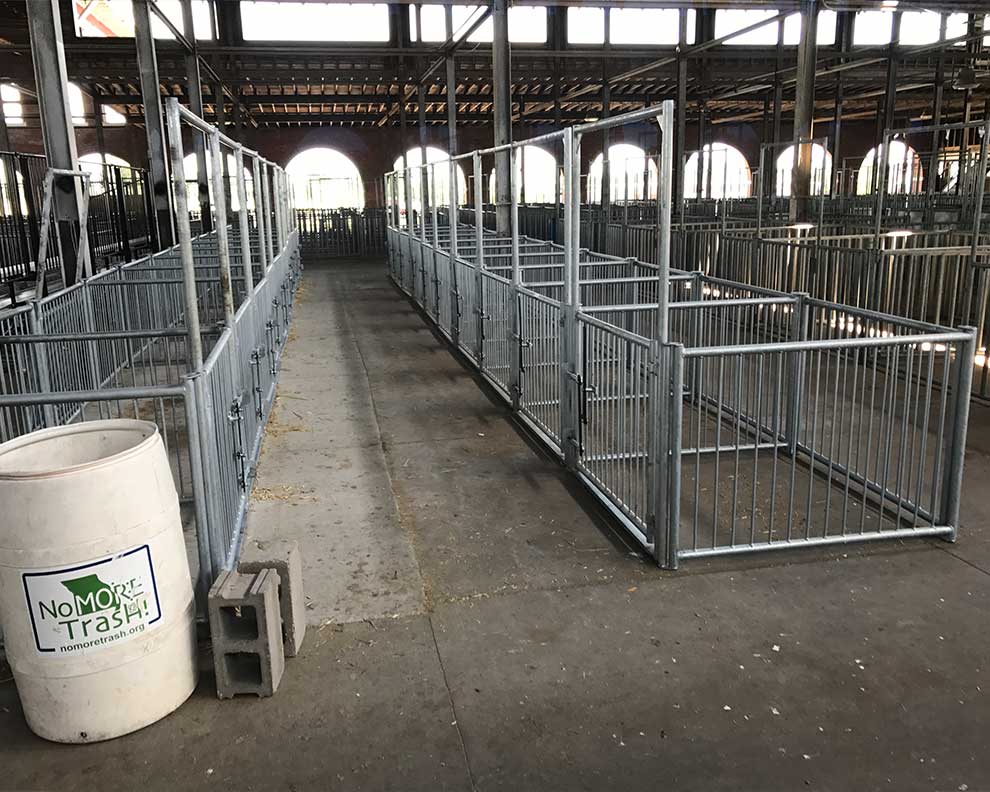

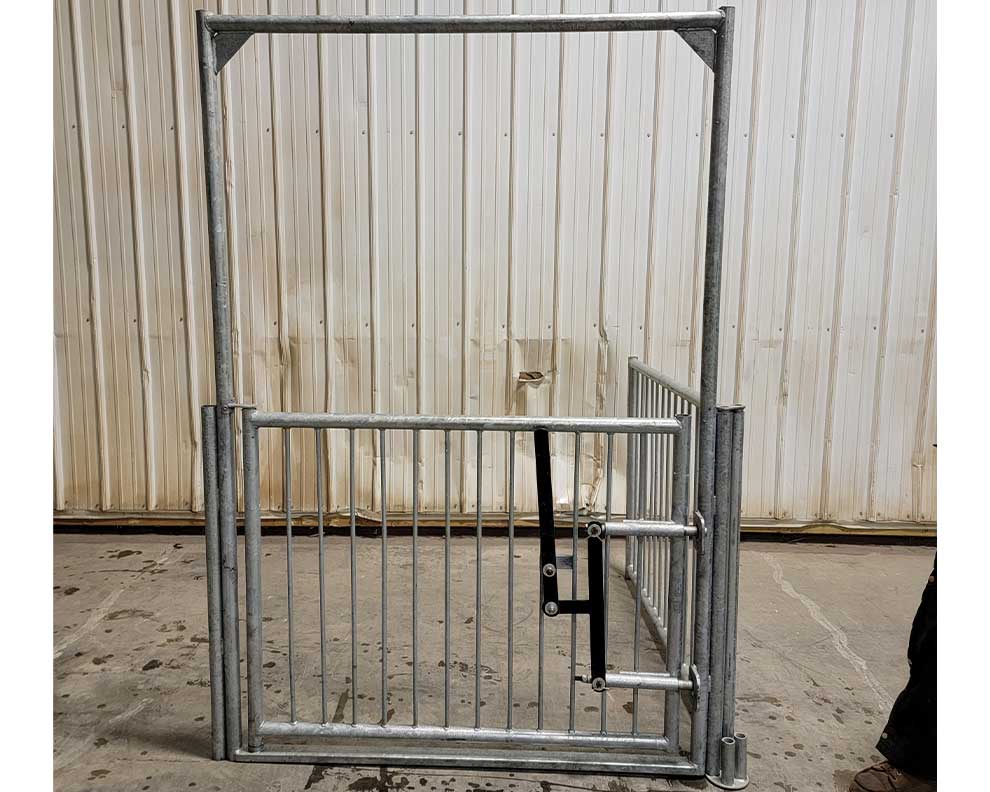

• Designed to hold pigs, sheep, and goats
• Highest quality pens on the market
• Hot-dipped galvanized for longer-lasting durability
• Made with 1 5/8″ OD tubing 14ga and 12ga for the frames, and 1/2″ Hot rolled solid rod for the uprights
• Bowgates are 80″ overall height, with double spring latches that are easy to open and eliminate pinch points
• 3″ spacing between vertical rods makes pens safe for various sizes of livestock
• Slide-in connectors for simple setup and tear down for multipurpose venues
